Stainless Steel Series

Stainless Steel Electrical Solutions

PHBXG Series

PHBXG Series includes a variety of models, from small to large. The enclosures are made from high-quality stainless steel, offering exceptional durability and corrosion resistance. Designed for industrial and outdoor applications, these boxes are suitable for harsh environments, providing reliable protection and power distribution. Perfect for factories, construction sites, and other demanding settings.

They are suitable for applications in demanding environments with high requirements for distribution boxes:

  • Industrial sites

  • Outdoor environments

  • Heavy-duty applications

Stainless Steel Distribution Box、Durable Stainless Steel Power Box、Heavy-Duty Stainless Steel Electrical Cabinet、Industrial Stainless Steel Enclosure

Our delivery time is about a week

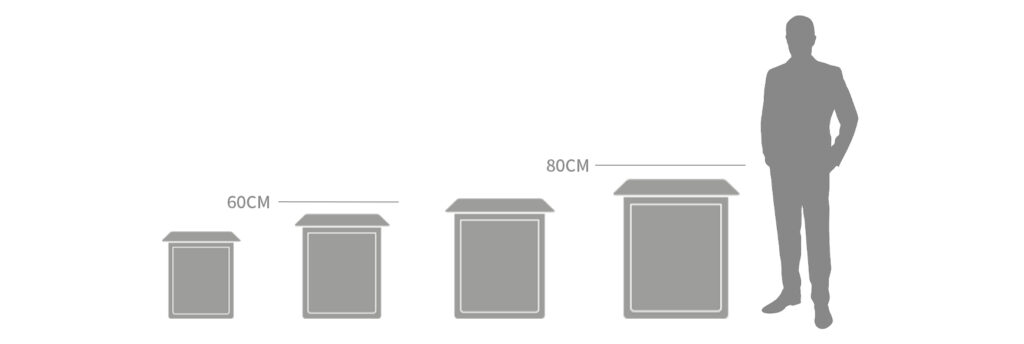

Stainless Steel Series Size Preview
Stage distribution box wiring diagram, displaying power input, output, and connection methods

According to the requirements, we will create your distribution box separately. If you want an empty box, I can make a hole for you for free.

1PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and two switches protection size 500X400X180mm

Output Circuit:2*5-hole 32A

2*220V national standard
5-hole 10A

Switch Protection:2*3P+N 32Aelectric leakage

2*1P 16A air switches



Approx:$230

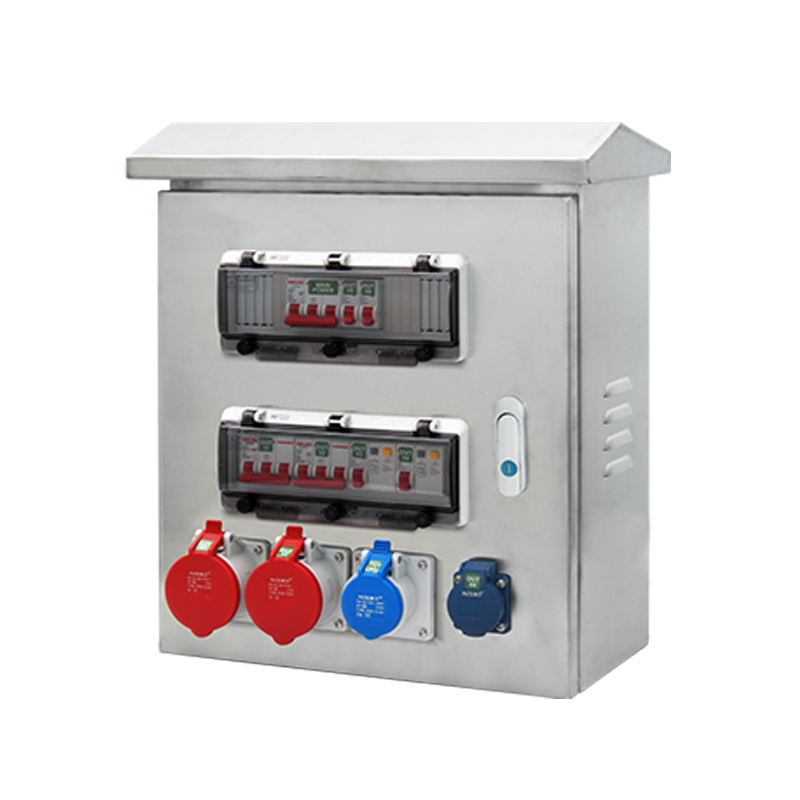

2PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three switch protection sizes 500X400X180mm

output circuit:2*pieces of 32A with 5 holes

1*16A 3 hole   1*220V national standard   5-hole 10A

Switch protection:1*main gate 3P 63A air switch

2*3P+N 32Aelectric leakage

2*pieces of 1P+N 16Aelectric leakage

Approx:$230

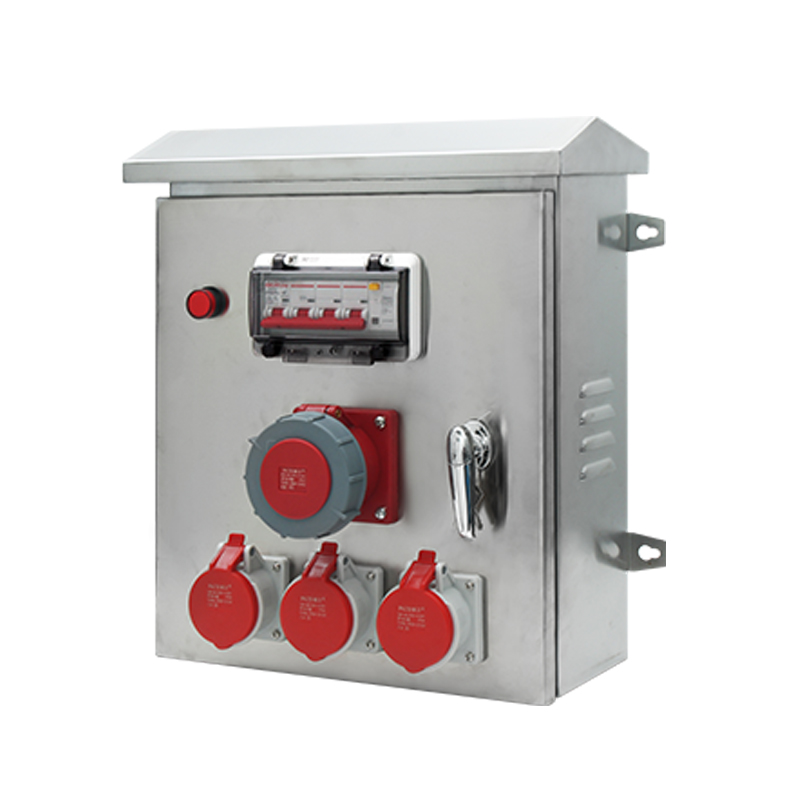

3PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and one switch protection size 500X400X180mm

output circuit:1*5-hole 63A

3*5-hole 16A

Switch protection:1*4P 125A leakage current

Approx:$230

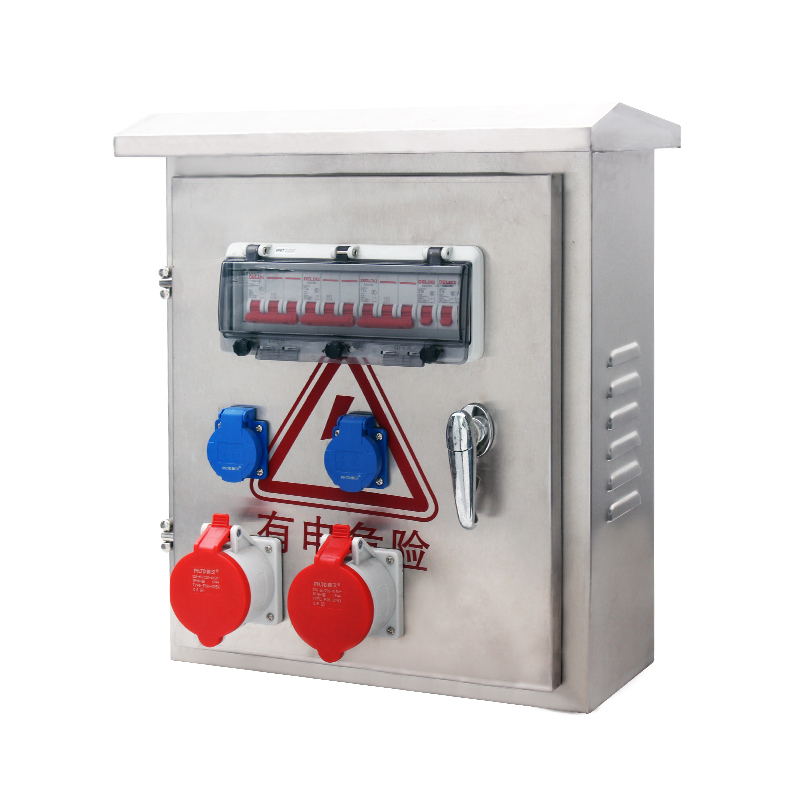

4PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three types of switch protection with total switch size 500X400X180mm

output circuit:2*4-hole 32A

2*220V national standard
5-hole 10A

Switch protection:Main gate 3P 63A air switch

2*3P 32A air switches

2*1P 16A air switches

Approx:$230

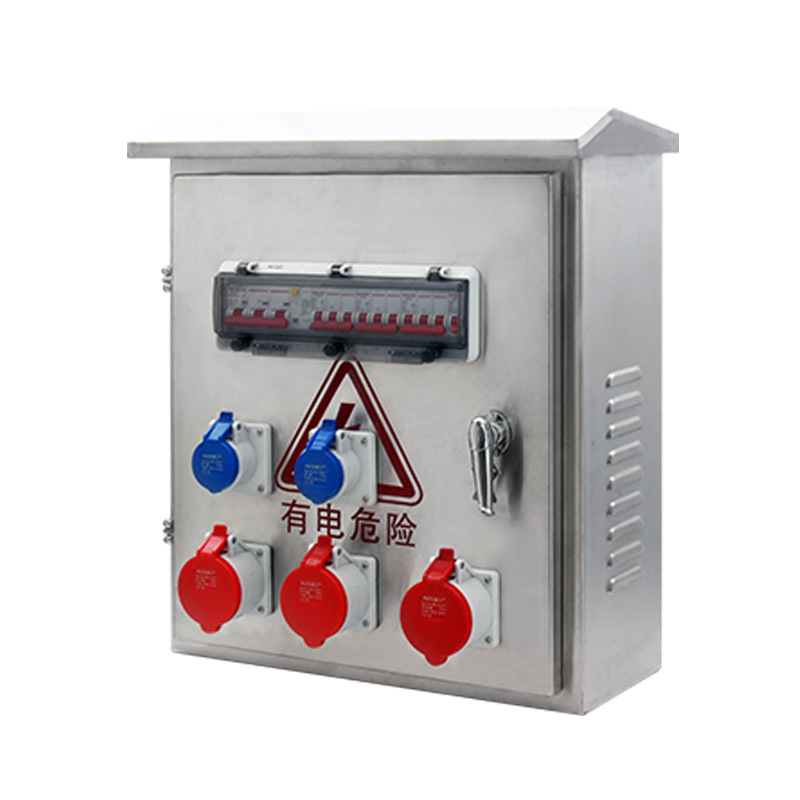

5PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three types of switch protection with total switch size 600X500X180mm

output circuit:3*pieces of 32A with 5 holes

2*16A 3 holes

Switch protection:Main switch 3P+N 100A leakage

3*3P 32A air switches

2*1P 16A air switches

Approx:$230

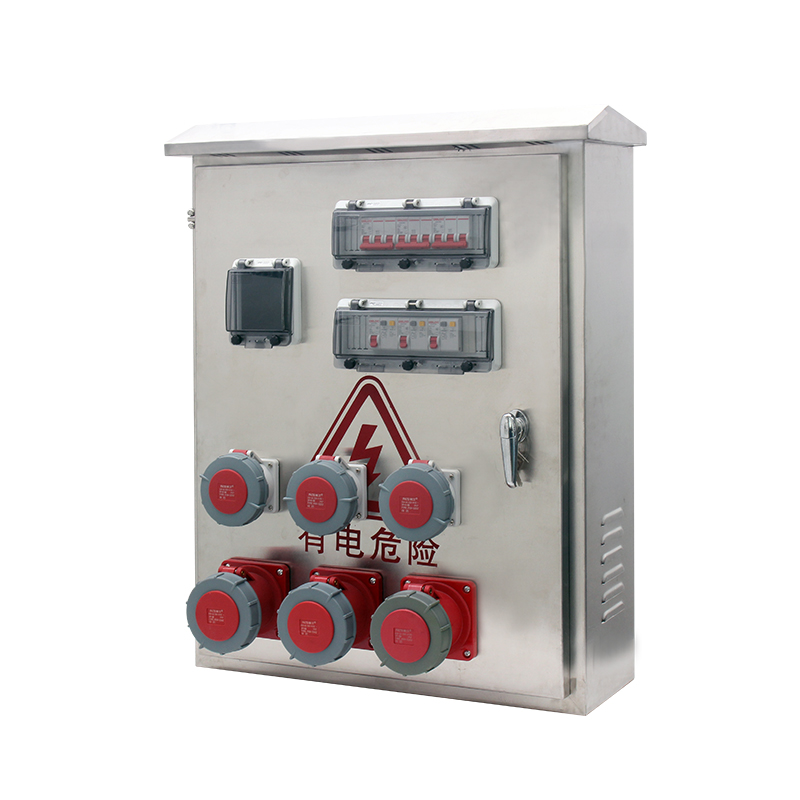

6PHLTD industrial socket box 304 stainless steel maintenance power box with two outputs and three switches for protection with total switch size 800X600X200mm

output circuit:3*63A 5-hole IP67

3*16A 5 hole IP67

Switch protection:Main switch 4P 200A leakage

3*3P 63A air switches  3*3P 16A air switches

Approx:$230

Main Parameters:

  • Material: 304 stainless steel, providing excellent corrosion resistance and durability for outdoor and harsh environments.
  • Protection level: IP54, ensuring protection against dust and water splashes from any direction.
  • Installation method: Wall-mounted, supporting surface mounting for easy installation and secure placement.
  • Socket type: Aviation socket, designed to meet the demands of high current and high-frequency plugging and unplugging, ensuring long-lasting performance.
  • Security features: Equipped with a lock design to enhance anti-theft and unauthorized access protection, providing added security.
  • Configuration flexibility: Offers multiple configuration options, allowing customization of internal electrical components and layout to meet specific requirements.
  • Usage environment: Ideal for use in harsh conditions such as outdoor, humid, and dusty environments where durability and reliability are essential.

Usage Scenario:

  • Industrial Plant Area: Functions as an emergency maintenance power supply on production lines, quickly addressing equipment failures and ensuring uninterrupted production.
  • Construction Site: Provides a stable and reliable power supply for temporary electrical equipment, meeting diverse needs during the construction process.
  • Public Facilities: Supports maintenance and upkeep of outdoor equipment, such as streetlights and surveillance cameras, ensuring the smooth operation of urban infrastructure.
  • Agricultural Irrigation: Delivers safe and reliable electrical support for irrigation systems in outdoor environments, including farmland and orchards, ensuring efficient irrigation operations.
