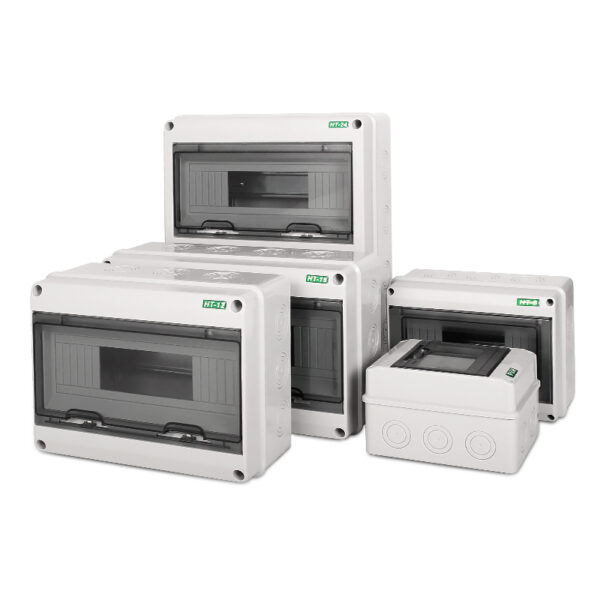

PHLTD Waterproof Distribution Box, Switch Box, Leakage Protection, Surface Mounted Plastic HT-5-24 Circuit Air Switch Box

PHLTD HT Switch Box Product Parameter Table
model		External dimensions（mm)			gross weight	net weight	Packing	Carton size（mm)
		L	W	H

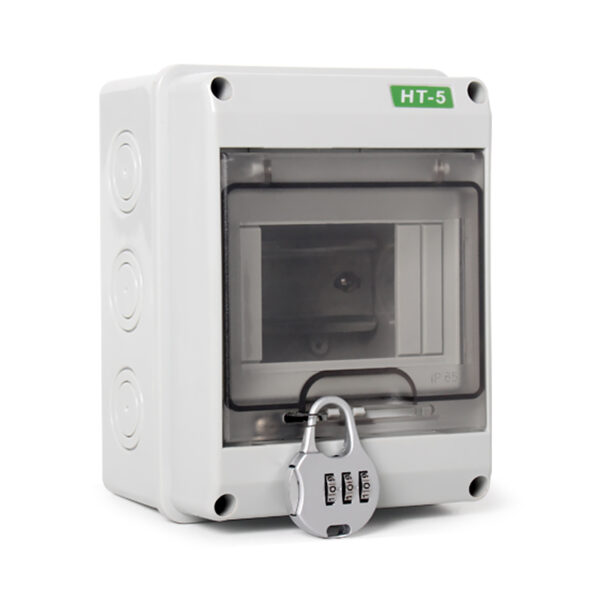

	HT 5WAYS	115	150	90	13	11.9	40	49x33x48

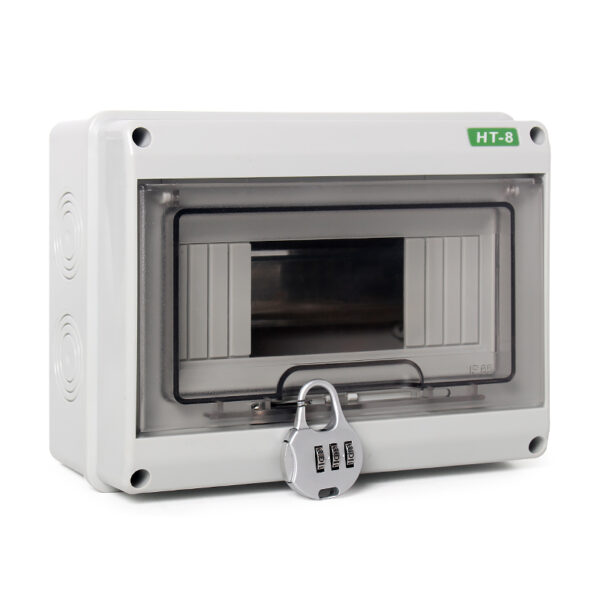

	HT 8WAYS	197	150	90	14.2	13.2	30	48x33x48.5
	HT 12WAYS	250	193	105	16.3	15.3	20	52.5×40.5×57
	HT 15WAYS	305	195	105	18.5	17.5	20	63×40.5×57
	HT 18WAYS	360	198	105	20.4	19.4	20	74×40.5×57

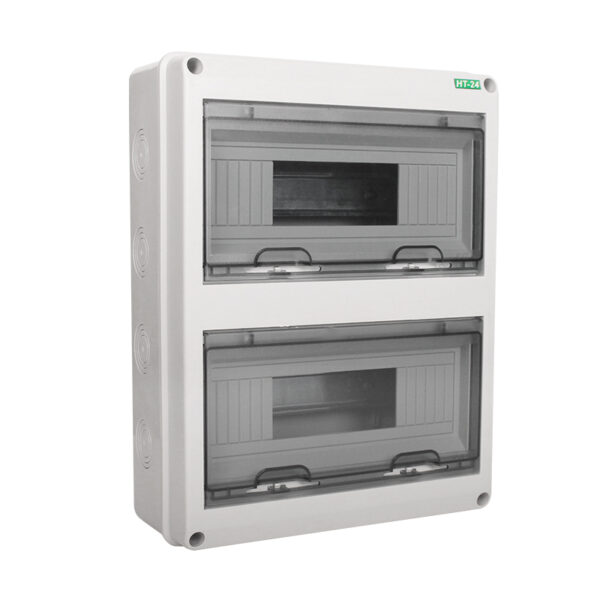

	HT 24WAYS	270	350	105	14.6	13.6	10	56.5×36.5×56.5

Shell material: ABS
Transparent door panel: PC
Material characteristics: Excellent impact resistance, heat resistance, low-temperature resistance, chemical resistance, good electrical performance, good surface gloss, etc.
Certification: CE, ROHS
Protection level: IP65
Usage: Suitable for indoor and outdoor use, including electrical, communication, firefighting equipment, steel smelting, petrochemicals, electronics, power, railways, construction sites, mining sites, airports, hotels, ships, large factories, coastal factories, unloading docks, sewage and wastewater treatment facilities, environmental pollution facilities, etc.

Installation method:

1. Internal installation: The box contains guide rails for installing rail-type circuit breakers, as well as neutral and ground wire bars for wiring.
2. External installation: Can be directly fixed to the wall through the installation holes at the bottom of the box (fixed to the wall with screws or nails through the four corners of the box).
   Inlet and outlet holes: The box is equipped with reserved holes for threading wires.
