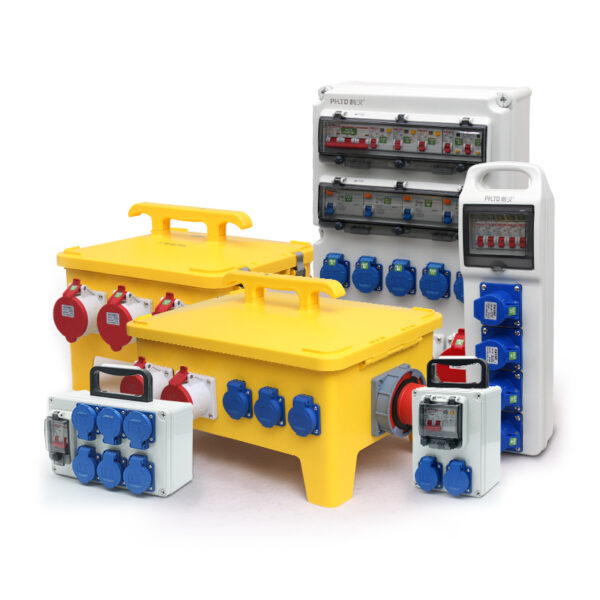

PHLTD waterproof portable distribution box for aviation and construction sites, mobile maintenance power socket box

PHLTD Portable Distribution Box Parameter Table
protection grade	Branding	Shell material
IP44 protection level	PHLTD	ABS engineering plastic
Order number: PHLTD721304
dimension	configuration
	Concealed plug	5P 32A*1
	Industrial socket	3P 16A*2
		5P 32A*2
	Air Switch	3P 32A*2
	Leakage protector	1P+N 32A
Order number: PHLTD731304
dimension	configuration
	Concealed plug	3P 32A*1
	Industrial socket	220V national standard 5-hole 10A*2
		5P 32A*2
	Air Switch	3P 32A*2
	Leakage protector	1P+N 32A*1
Order number: PHLTD771312
dimension	configuration
	Concealed plug	5P 63A*1
	Industrial socket	3P 16A*12
	Main circuit leakage protector	3P+N 63A*1
	Open air switch	1P 16A*12
Order number: PHLTD781308
dimension	configuration
	Concealed plug	5P 63A*1
	Industrial socket	5P 32A*4
		3P 16A*2
		220V national standard 5-hole 10A*2
	Main gate air switch	3P 63A*1
	Open circuit leakage protector	3P+N 32A*4
		1P+N 16A*4
Order number: PHLTD791307
dimension	configuration
	Concealed plug	5P 63A*1
	Industrial socket	5P 32A*3
		3P 16A*3
	Main gate air switch	3P 63A*1
	Open circuit leakage protector	3P+N 32A*3
		1P+N 16A*3
Order number: PHLTD831308
dimension	configuration
	Concealed plug	5P 63A*1
	Industrial socket	5P 32A*4
		3P 16A*4
	Main gate air switch	3P 63A*1
	Open circuit leakage protector	3P+N 32A*4
		1P+N 16A*4
Product configuration can be customized according to needs

Main parameters:

• Shell material: ABS engineering plastic, high-strength, impact-resistant, and corrosion-resistant.
• Color: Yellow, enhances recognition and strengthens safety warnings.

Protection level: IP44, effectively resists external damage such as rainwater and dust.

• Configuration customization: Supports multiple internal configuration customizations, including different specifications for power sockets, circuit breakers, leakage protectors, etc., to meet various construction needs.

Portability: Designed with a comfortable handle for easy mobility.

• Safety features: Built-in multiple safety protection devices ensure worry-free operation during power distribution.

Usage scenarios:

• Aviation construction site: Used for airport runway maintenance, aircraft maintenance garages, and other areas, providing a stable power supply for various maintenance equipment and tools.
• Construction site: Serves as a temporary power distribution center, supporting high-power electricity needs for tower cranes, concrete mixers, lighting equipment, etc.
• Outdoor work: Such as road construction, bridge construction, municipal maintenance, etc., providing convenient power access for electric tools, generators, and other equipment.
• Temporary activities: Temporary venues for sports events, music festivals, exhibitions, etc., quickly set up power supply systems to ensure the smooth progress of activities.
