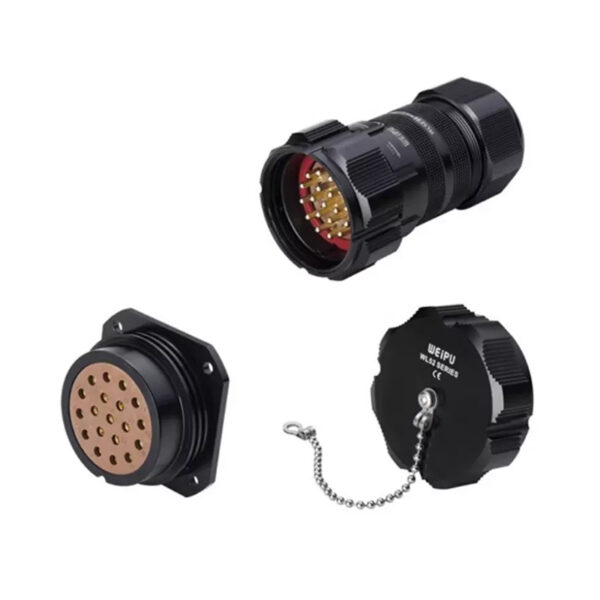

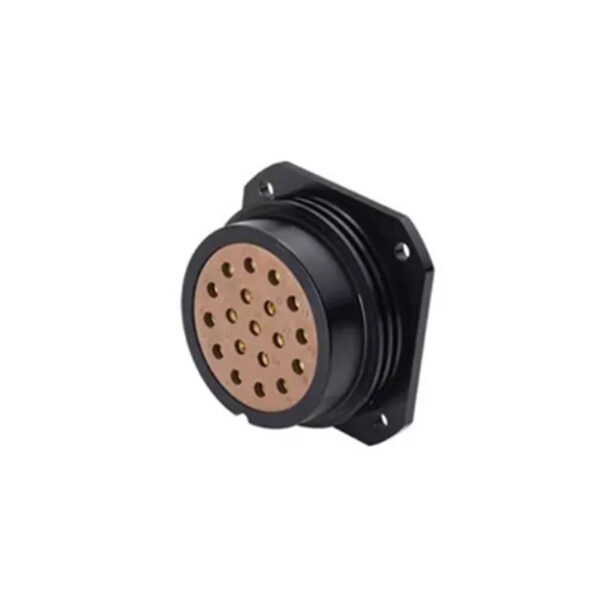

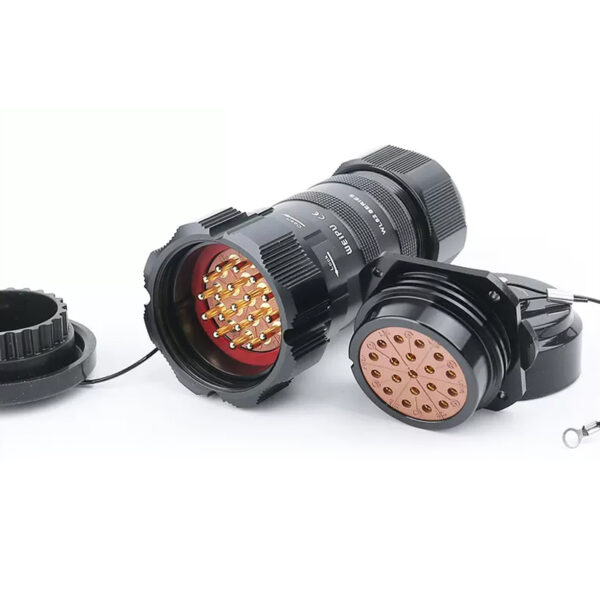

PHLTD square flange socket WL52K19Z IP67 threaded connection aluminum anodized shell

PHLTD 19 core thread connection parameter table
Insertion method	Housing material	insulator	Contact material	protection grade	Connection	Number of insertions	temperature range	insulation resistance
threaded	Aluminum anodizing	PPS, Fire rating V-0, temperature resistance 260C	Copper (gold-plated)	IP66/67	weld	500	‘-40°C-+85°C	2000 MQ
CORE	Rated current (A)	Contact diameter	working voltage	Voltage withstand (AC/V) Imin	Contact resistance (M Ω)	Wire gauge (mm ²/AWG)	Front view of the insulator at the male end
19	25	Φ3	700(DC.V),500 (AC.V)	2500	1	≤6/9

Enhanced Protection: The IP67 rating boasts high resilience, allowing the socket to operate seamlessly in damp, dusty conditions, and even short-term water submersion, significantly boosting equipment reliability and longevity.

Sturdy Build: Crafted with an anodized aluminum shell, it stands tough against wear and corrosion, confidently enduring extreme environments.

Safety First: Rest assured with PPS insulation, boasting a V-0 fire rating and a whopping 260°C heat tolerance. Gold-plated copper contacts ensure superior conductivity, guarding against corrosion, resistance issues, and poor connections, thus enhancing electrical safety and stability.

Versatile Temperature Range: Designed to perform flawlessly in temperatures ranging from -40°C to +85°C, it’s an ideal fit for diverse environments.

Effortless Installation & Maintenance: A hassle-free threaded connection not only ensures a robust link between the socket and cables or other gear but also simplifies disassembly and upkeep, making it user-friendly.

Broad Application Spectrum: Given its remarkable performance and reliability, this socket has found widespread adoption across multiple sectors, including industrial automation, solar energy, outdoor signage, oilfield equipment, and chemical installations, to name a few.
