| 1P+N Leakage Circuit Breaker Product Parameter Table |
  |
| Product series |
PHB6LE-63H series |
| product name |
Small leakage protector |
| Product Features |
C Type |
| Number of product poles |
1P+N |
| Rated current |
16A/32A/40A/63A |
| rated voltage |
230V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection/leakage protection |
| 16A-32A product size |
45×87.5mm |
| 40A-63A product size |
54×87.5mm |

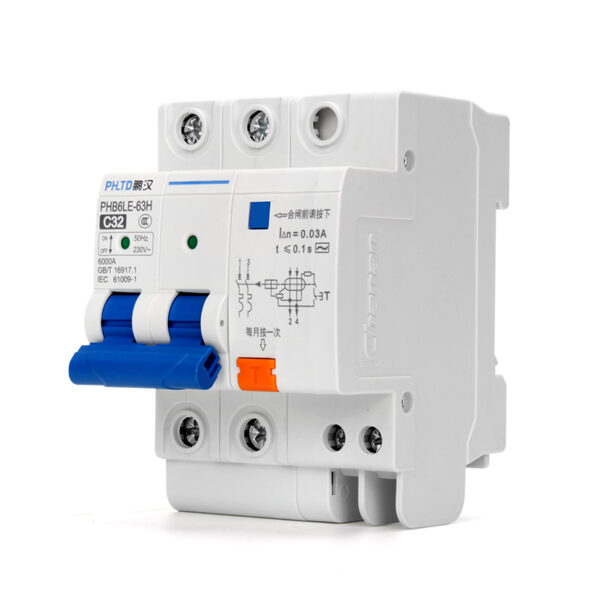

| 2P Leakage Circuit Breaker Product Parameter Table |
  |
| Product series |
PHB6LE-63H series |
| product name |
Small leakage protector |
| Product Features |
C Type |
| Number of product poles |
2P |
| Rated current |
16A/32A/63A |
| rated voltage |
230V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection/leakage protection |
| 16A-32A product size |
63×87.5mm |
| 63A product size |
72×87.5mm |
| 3P Leakage Circuit Breaker Product Parameter Table |
  |
| Product series |
PHB6LE-63H series |
| product name |
Small leakage protector |
| Product Features |
C Type |
| Number of product poles |
3P |
| Rated current |
16A/32A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection/leakage protection |
| 16A-32A product size |
90×87.5mm |
| 63A product size |
99×87.5mm |
| 3P+N Leakage Circuit Breaker Product Parameter Table |
  |
| Product series |
PHB6LE-63H series |
| product name |
Small leakage protector |
| Product Features |
C Type |
| Number of product poles |
3P+N |
| Rated current |
16A/32A/40A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection/leakage protection |
| 16A-32A product size |
99×87.5mm |
| 40A/63A product size |
117×87.5mm |
| 4P+N Leakage Circuit Breaker Product Parameter Table |
  |
| Product series |
PHB6LE-63H series |
| product name |
Small leakage protector |
| Product Features |
C Type |
| Number of product poles |
4P+N |
| Rated current |
16A/32A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection/leakage protection |
| 16A-32A product size |
117×87.5mm |
| 63A product size |
135×87.5mm |
| 125A product size |
202x210mm |
| name |
voltage |
Connection |
Arc extinguishing method |
Occupation (1 digit=18mm) |
| 1P+N leakage protection circuit breaker |
230 |
Grounding wire, neutral wire |
Magnetic blowing type |
10-32A: 2.5 bits; 40-63A: 3 digits |
| 2P leakage protection circuit breaker |
230 |
Grounding wire, neutral wire |
Magnetic blowing type |
10-32A: 3.5 bits; 40-63A: 4-digit |
| 3P+N leakage protection circuit breaker |
400 |
Three phase four wire electricity |
Magnetic blowing type |
10-32A: 5.5 bits: 40-63A: 6.5 bits |
| 4P leakage protection circuit breaker |
400 |
Three phase four wire electricity |
Magnetic blowing type |
10-32A: 6.5 bits: 40-63A: 7.5 bits |

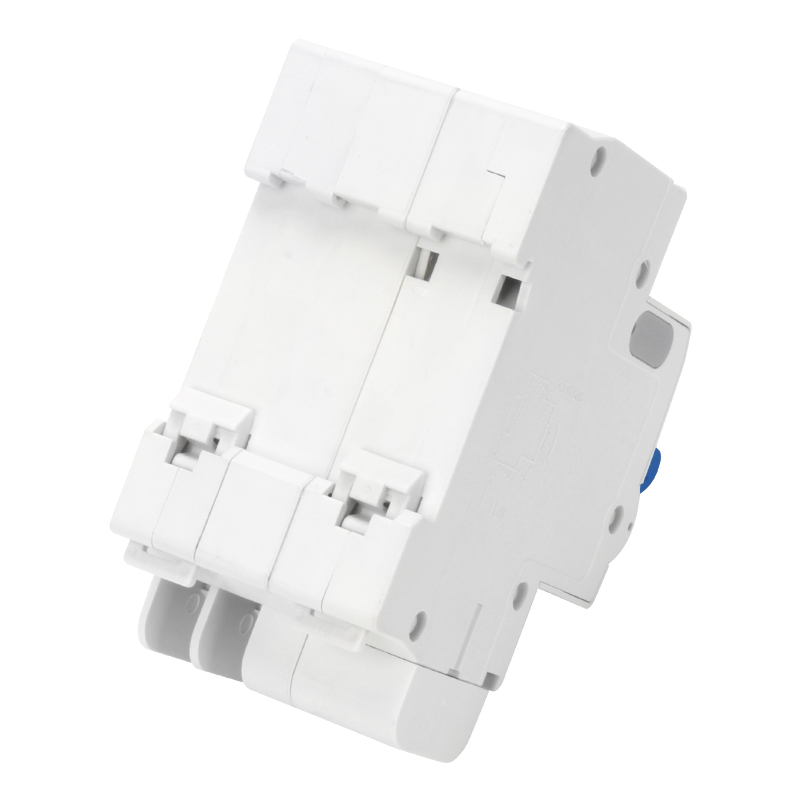

PHLTD Air Switch with Leakage Protection Circuit Breaker
PHLTD’s air switch with leakage protection circuit breaker is a power control device that combines safety and efficiency, designed to meet the needs of various electrical systems. This product series includes configurations such as 2P (single-phase two-wire), 3P+N (three-phase four-wire without neutral grounding), and 4P (three-phase four-wire with neutral grounding). The current specifications cover 16A, 32A, and 63A, allowing flexibility to accommodate a wide range of applications, from household electrical circuits to industrial equipment control.
One of its key features is the leakage protection function, which quickly disconnects the circuit upon detecting current leakage (i.e., current flowing from the live wire to the ground wire instead of returning completely to the neutral wire via the load). This function effectively prevents electric shock accidents, ensuring personal safety. Moreover, the compact design of the device saves installation space, especially when it needs to occupy four positions (i.e., one unit in a standard distribution box), while still maintaining efficient power distribution and protection capabilities.
Whether used in household circuits, lighting control, or as a power supply for motors and equipment on industrial production lines, PHLTD’s air switches with leakage protection circuit breakers provide a stable and reliable power supply, while minimizing the risk of electrical fires and personal injury. They are essential safety components in modern electrical systems.
