PHLTD IP66 protection level outdoor waterproof and dustproof distribution box/control base box

Plastic buckle gray, transparent size chart (mm)
specifications	Installation board size	Internal dimensions
100*150*70	65*115*3	70*120*40
120*90*70	100*70*3	100*70*50
100*200*70	70*170*3	70*170*40
125*175*90	105*158*3	105*158*75
150*150*90	130*130*3	130*130*75
135*135*75	114*114*3	114*114*60
155*135*85	134*114*3	134*114*70
160*210*100	140*190*3	140*190*85
210*110*70	190*90*3	190*90*50
210*160*130	190*140*3	190*140*105
210*210*100	190*190*3	190*190*85
125*225*110	107*208*3	107*208*94
210*210*130	190*190*3	190*190*105
220*170*110	183*135*3	196*148*93
260*110*75	240*90*3	240*90*60
260*110*100	240*90*3	240*90*85
260*160*100	240*140*3	240*140*85
260*160*130	240*140*3	240*140*105
290*190*140	250*160*3	260*170*125
275*175*110	225*155*3	255*155*90
300*200*170	270*170*3	280*180*150
300*250*150	270*220*3	280*230*130
300*300*170	270*270*3	280*280*150
350*250*130	320*220*3	325*225*108
400*300*170	370*270*3	380*280*150
400*300*180	370*270*3	380*280*160
400*300*200	377*277*3	377*277*180
450*350*200	420*320*3	428*328*180
500*400*200	470*370*3	480*380*180
600*400*230	570*370*3	570*370*190
600*500*220	570*470*3	570*470*200
600*500*230	570*470*3	570*470*190
800*600*260	760*570*3	780*580*230

Product parameters showcase its robust features in a seamless manner, as detailed below:

Firstly, in terms of Protection Grade, it boasts an impressive IP66 rating, which not only ensures effective shielding against dust infiltration but also stands firm against high-pressure water jets, even amidst extreme outdoor conditions like intense storms and sandstorms. This robust protection ensures the internal electrical components remain secure and undamaged.

Moving on to its Material Makeup, it is meticulously crafted from premium ABS and PC alloy materials, a harmonious blend that combines the durability of both. This fusion delivers exceptional impact resistance and weather endurance, ensuring that the product remains undeformed and unfaded, even after prolonged usage.

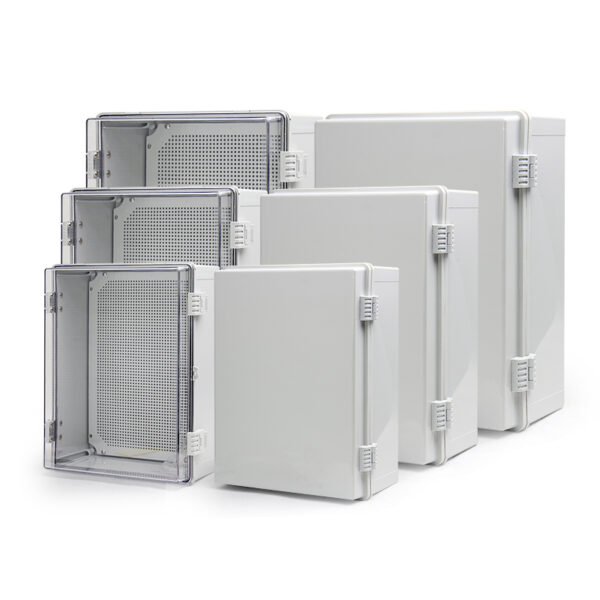

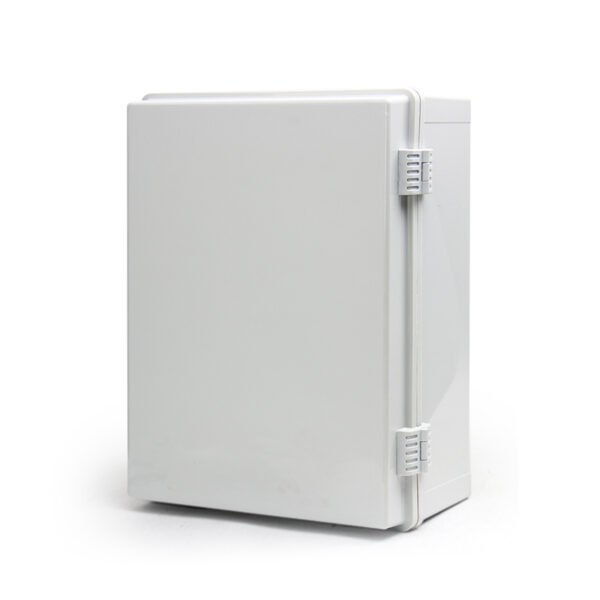

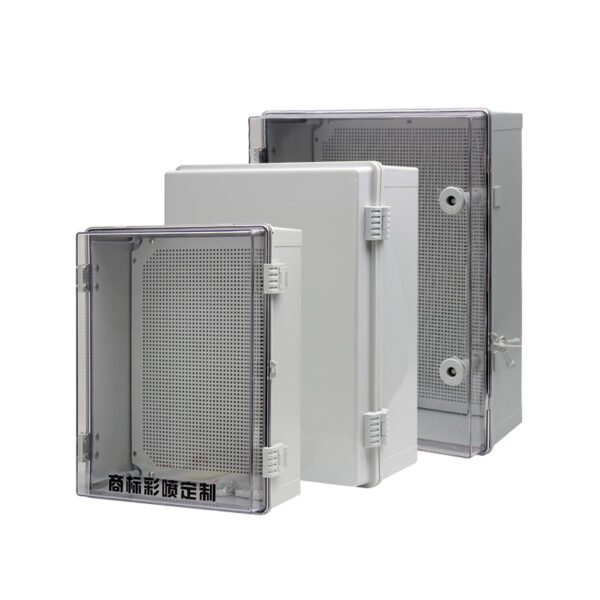

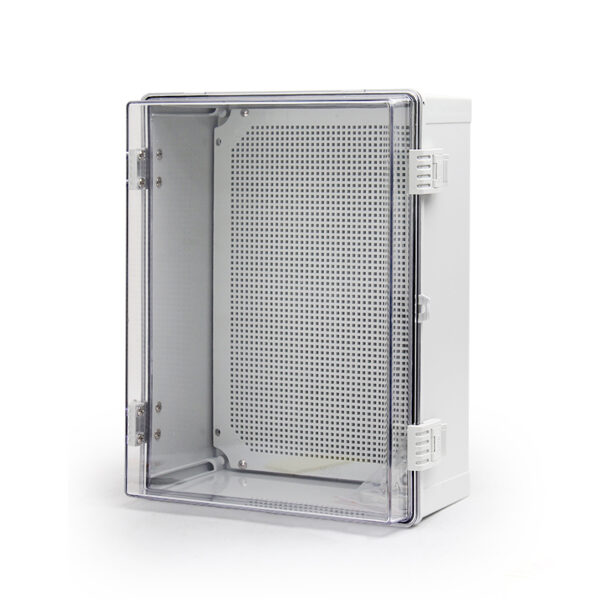

When it comes to Door Variants, two stylish options are thoughtfully provided to cater to different preferences and needs. The sleek gray door offers a subtle, all-around fit that blends seamlessly into various settings, while the transparent door provides a crystal-clear view into the box’s interior, simplifying maintenance tasks and operational monitoring.

Furthermore, its Innovative Structure is a testament to its design prowess. The snap-on design facilitates swift and hassle-free installation, eliminating the need for intricate tools. This innovative approach not only maintains exceptional sealing but also allows for effortless opening and closing. The interior space, meticulously planned, accommodates a variety of electrical component installations, effortlessly meeting diverse requirements.

Lastly, its Versatile Applicationsmake it an indispensable choice for a wide array of outdoor settings. Whether it’s lighting systems, garden landscapes, road monitoring stations, communication base stations, or industrial facilities, where a high level of power distribution control and protection is paramount, this product stands tall as the ideal solution.
