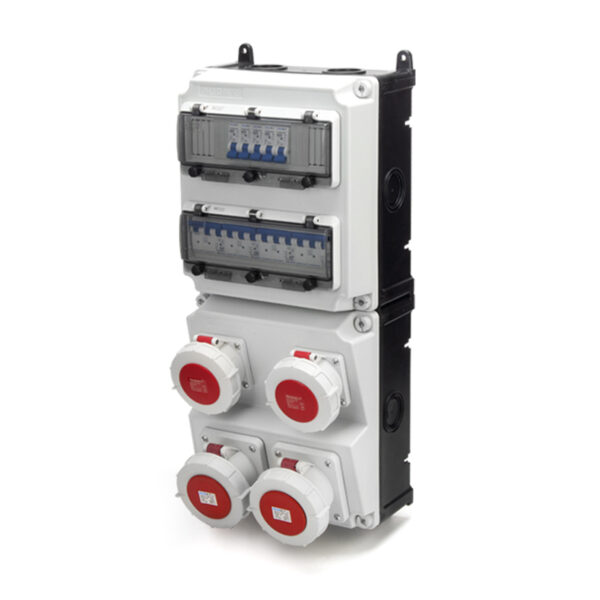

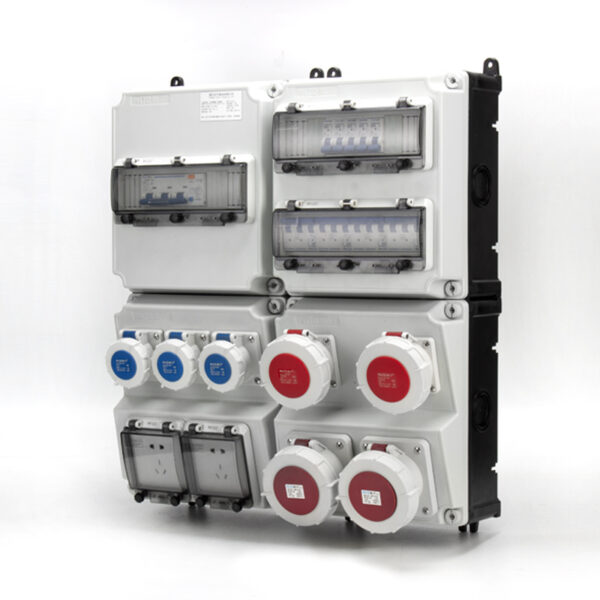

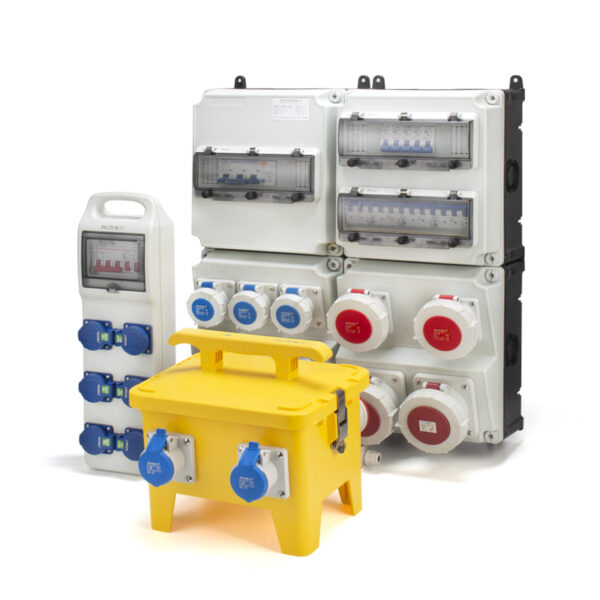

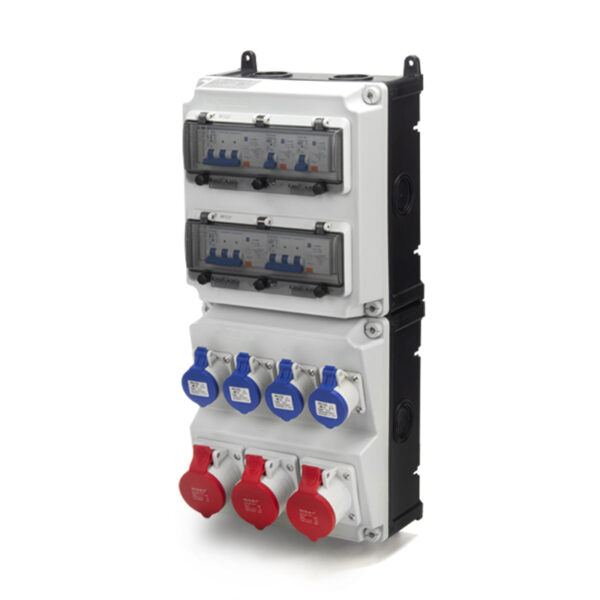

PHLTD Industrial Power Socket Box with Aviation Combination Splicing Distribution Box

PHLTD Splicing Socket Box Parameter Table
protection grade	Branding	Shell material
IP44 protection level	PHLTD	Polycarbonate PC engineering plastic
Order number: PHLTD312103
dimension	configuration
	Industrial socket	4P 32A*1
		3P 16A*1
		220V five-hole 10A*1
	Leakage protector	3P+N 63A*1
	Air Switch	1P 32A*1
		1P 16A*2
Order number: PHLTD322103
dimension	configuration
	Industrial socket	5P 32A*2
		3P 16A*1
	Leakage protector	3P+N 32A*2
		2P 16A*1
Order number:PHLTD332102
dimension	configuration
	Industrial socket	5P 32A*1
		5P 16A*1
	Leakage protector	3P+N 32A*1
		3P+N 16A*1
Order number:PHLTD342103
dimension	configuration
	Industrial socket	5P 32A*1
		3P 16A*2
	Leakage protector	3P+N 32A*1
	Air Switch	2P 16A*1
Order number:PHLTD352103
dimension	configuration
	Industrial socket	3P 16A*3
	Leakage protector	1P+N 63A*1
	Air Switch	1P 16A*3
Order number:PHLTD362104
dimension	configuration
	Industrial socket	5P 32A*2
		220V five hole 10A * 2
	Air Switch	4P 63A*1
		3P 32A*2
		1P 16A*2
Order number:PHLTD372102
dimension	configuration
	Industrial socket	4P 63A*2
	Leakage protector	3P 63A*2
Product configurations can be customized according to your needs

Main Parameters:

• Material: Polycarbonate (PC) engineering plastic, offering excellent UV resistance, weather resistance, and impact resistance. It can be used for extended periods in harsh environments without aging or deformation.
• Protection Level: IP44, effectively preventing external damage from dust and water mist, ensuring the safe and stable operation of internal electrical components.
• Structure: Modular splicing design, making maintenance and repairs more convenient. There is no need for complete disassembly; internal components can be quickly replaced or upgraded.
• Size Specifications: Multiple sizes available, with customized services to meet different spatial layout requirements.
• Color: Standard color is gray, but can be customized according to customer needs.
• Carrying Capacity: Depending on the specific configuration, it can support electrical components of different power ratings.

Usage Scenarios:

• Industrial Production Line: Serves as a control cabinet or distribution center, centrally managing various electrical equipment along the production line.
• Outdoor Work Areas: Suitable for locations such as wind farms, oil fields, docks, etc., providing waterproof and dustproof power distribution and maintenance solutions.
• Aerospace Facilities: Used in aircraft maintenance garages, spacecraft testing centers, and other high-safety electrical environments.
• Research Laboratories: Functions as the power control and management center for experimental equipment, ensuring safety and stability throughout the experimental process.
