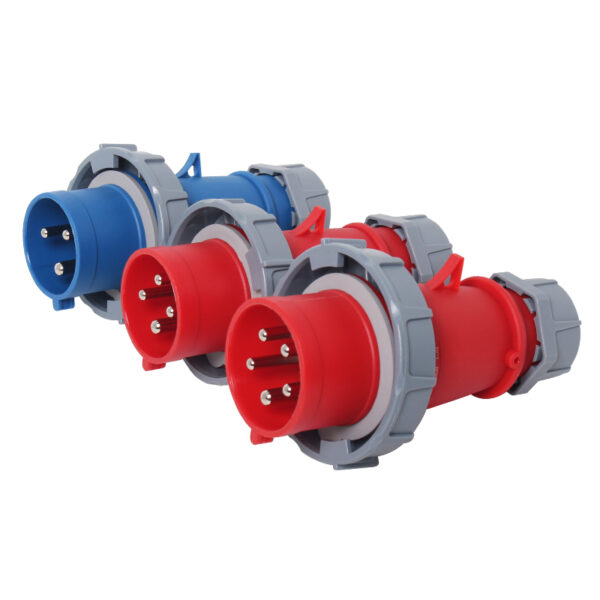

PHLTD high current IP67 waterproof industrial plug socket 3-core 4-core 5-core 63A125A male and female aviation plug

IP67 16A Industrial Plug Product Parameter Table
ampere	number of poles	a	b	c	d	e	f
16A	3	47	96.5	17	133	75.5	108.5
	4	53.5	100	17	88.5	83	112
	5	60	103	17	140	92	115.5
Wire cross-sectional area (square millimeters) from minimum to maximum 1.5-2.5

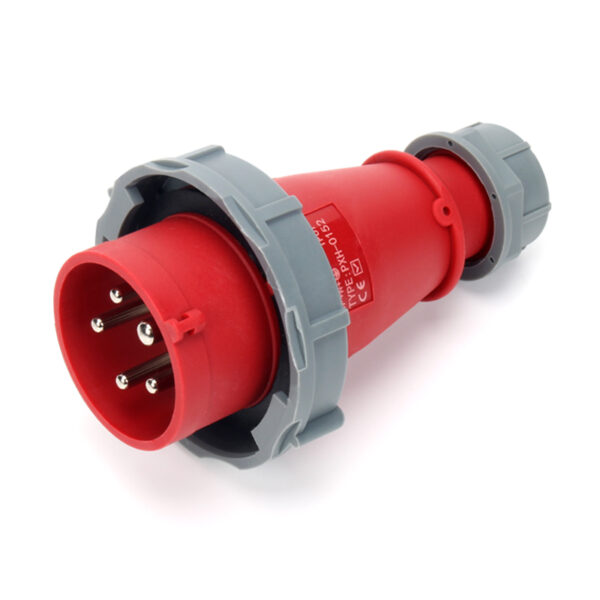

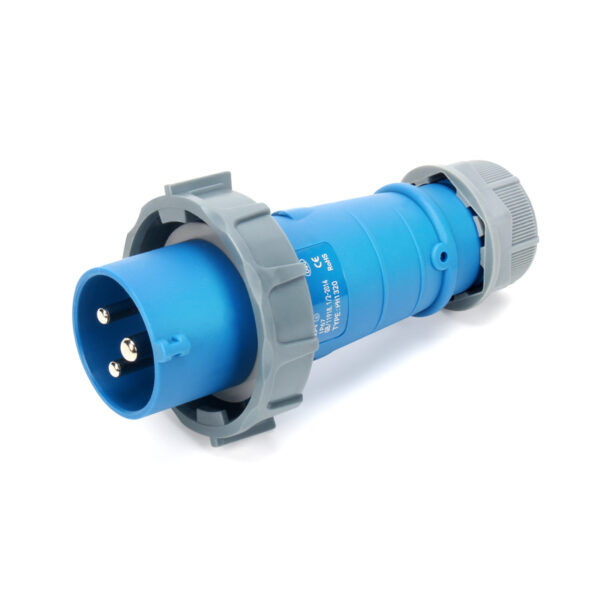

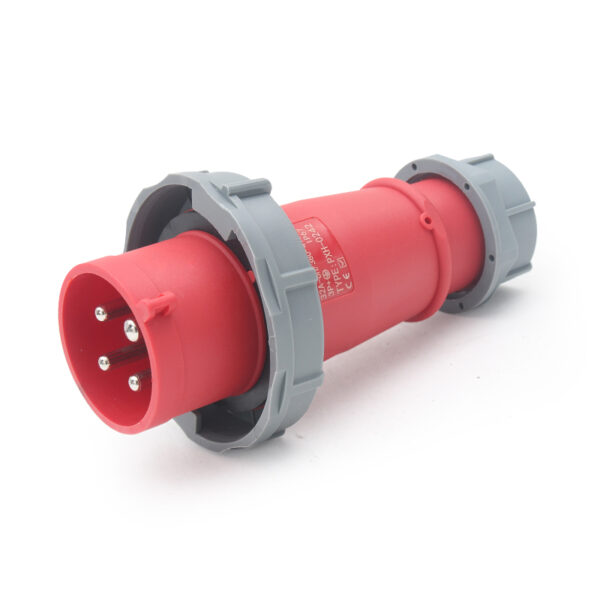

IP67 32A Industrial Plug Product Parameter Table
ampere	number of poles	a	b	c	d	e	f
32A	3	63	121	24	167	99	135
	4	63	121	24	167	99	135
	5	70	121	24	167	101	135
Wire cross-sectional area (square millimeters) from minimum to maximum4.0-6.0

IP67 63A Industrial Plug Product Parameter Table
ampere	number of poles	a	b	c	d	e
63A	3	133	75.5	36.5	240	188
	4	133	75.5	36.5	240	188
	5	133	75.5	36.5	240	188
Wire cross-sectional area (square millimeters) from minimum to maximum 10-16

IP67 125A Industrial Plug Product Parameter Table
ampere	number of poles	a	b	c	d	e	f	g
125A	3	286	219	57	81.1	131.5	83.3	42.5
	4	286	219	57	81.1	131.5	83.3	42.5
	5	286	219	57	81.1	131.5	83.3	42.5
Wire cross-sectional area (square millimeters) from minimum to maximum25-35

The PHLTD high-current IP67 waterproof industrial plug and socket series boasts widespread application in mechanical, automation, power equipment, shipbuilding, outdoor lighting, and new energy sectors.

[Core Features]

• IP67 High Protection: Features advanced sealing technology, enabling normal operation even when fully submerged (up to 1 meter) or enduring prolonged exposure to humidity and dust. This effectively shields against moisture, dust, and other external factors, ensuring electrical system stability and safety.

• High Current Capacity: Offers a range of current specifications from 63A to 125A, catering to high-power equipment needs. This reduces connector count, simplifies wiring, and enhances system efficiency and reliability.

• Solid Yellow Core Copper Construction: Pins and sockets incorporate solid yellow core copper for superior conductivity and mechanical strength. This ensures stable current transmission, minimizes resistance loss, improves wear and corrosion resistance, and prolongs product lifespan.

• Enhanced Safety & Reliability: Incorporates multiple safety features, like anti-misoperation design, anti-loosening lock buckle, and short circuit protection. These mechanisms prevent electrical accidents due to incorrect operation or environmental factors, safeguarding personnel and equipment.
