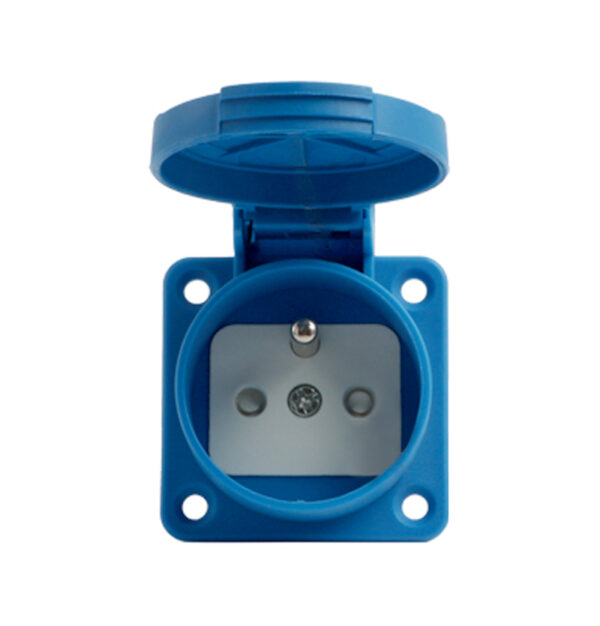

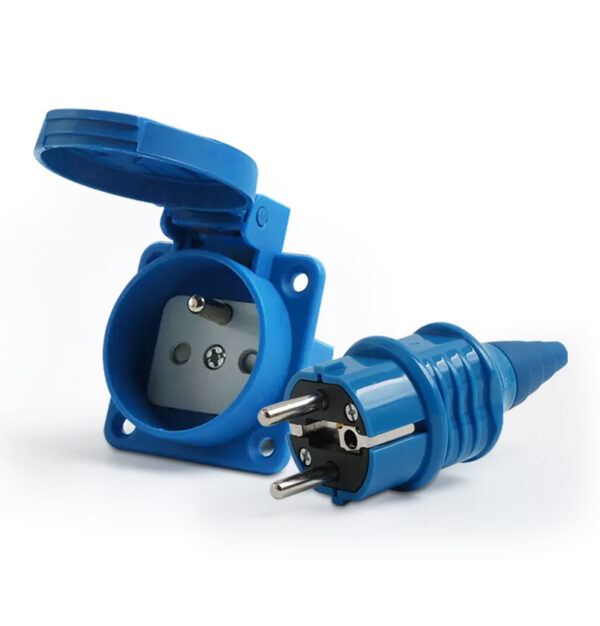

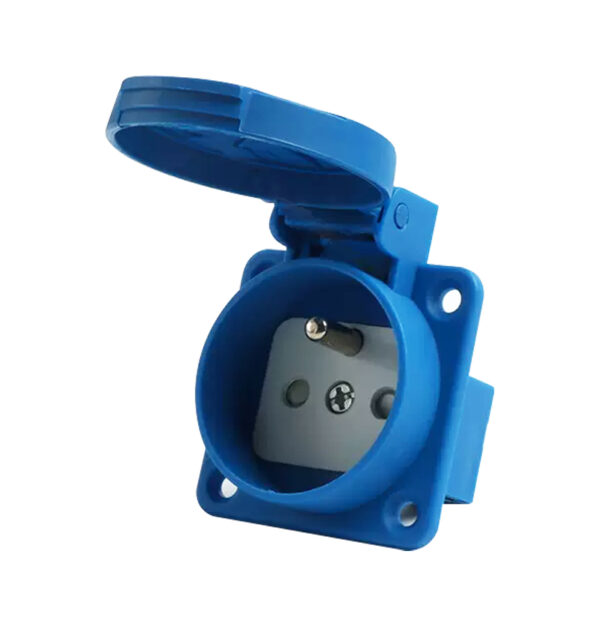

PHLTD French SCHUKO concealed socket 16A 220V fixed French standard cabinet input power transmission plug socket

PHLTD Standard Socket Size Table
ampere	number of poles	a	b	c	d	e
16	2	61mm	50mm	38mm	24.2mm	38mm
		f	g	h	i	j
		50mm	4.5mm	23mm	21.7mm	6.5mm
∅: 44.5mm cross-sectional area of wire (square millimeters) from minimum to maximum

PHLTD Standard Plug Size Table
ampere	number of poles	a	b	c	d	e	f
16	2	105mm	41.8mm	19mm	42mm	19mm	10mm
Wire cross-sectional area (square millimeters) from minimum to maximum 1.5-2.5

Protection and Safety Features:

• Waterproof and Dustproof: It boasts IP44-level capabilities, effectively barring moisture and dust, ensuring the safety and reliability of electrical connections.
• Anti-Electric Shock Design: Inside, it incorporates a special protection structure to prevent accidental touching of live parts during plug insertion or removal, thus avoiding electric shock accidents.
• Overload Protection: Equipped with a device, it automatically shuts off power when the current exceeds the rated value, preventing safety hazards like electrical fires due to overload.
• Grounding System: It comes with a reliable grounding system to ensure effective grounding during use, minimizing the risk of electric shock.

Advantages:

• High Safety: Crafted from high-quality materials with exceptional conductivity and insulation, it guarantees electrical safety during operation.
• Strong Durability: Featuring a sturdy shell design, it withstands challenging environmental and working conditions, like high temperatures and humidity, ensuring long-term stable performance.

Application Scope and Scenarios:

• Industrial Automation: Suitable for power transmission and control in equipment like injection molding machines, machine tools, and automated production lines.
• Power Distribution System: Functions as a power input/output interface in equipment such as distribution boxes and cabinets.
• Construction Sites: Provides stable and reliable power access points for temporary electrical installations.
• Petrochemical Industry: Ideal for use in areas requiring special measures like explosion prevention and waterproofing, ensuring electrical safety.
