| 1P Air Switch Product Parameter Table |
 |
| Product series |
PHB6LE-63H series |
| product name |
miniature circuit breaker |
| Product Features |
C Type |
| Number of product poles |
1P |
| Rated current |
16A/32A/63A |
| rated voltage |
230V |
| Connection |
Pressure plate wiring |
| Installation method |

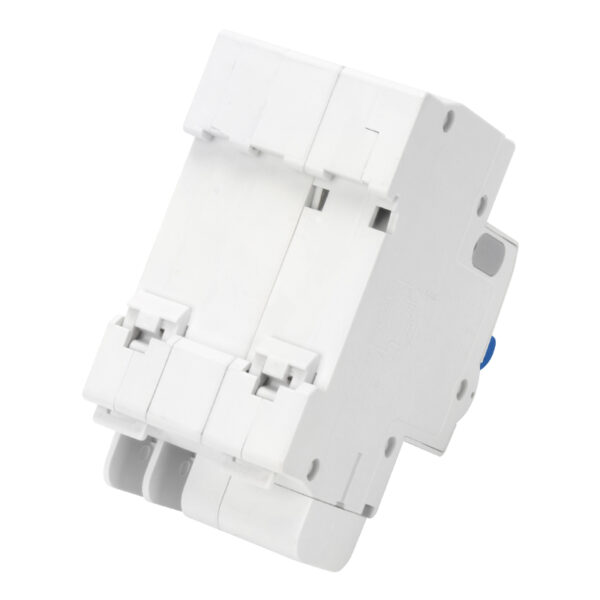

DIN-Rail Mounting |
| Function |
Overload/short circuit protection |
| product size |
18x80mm |

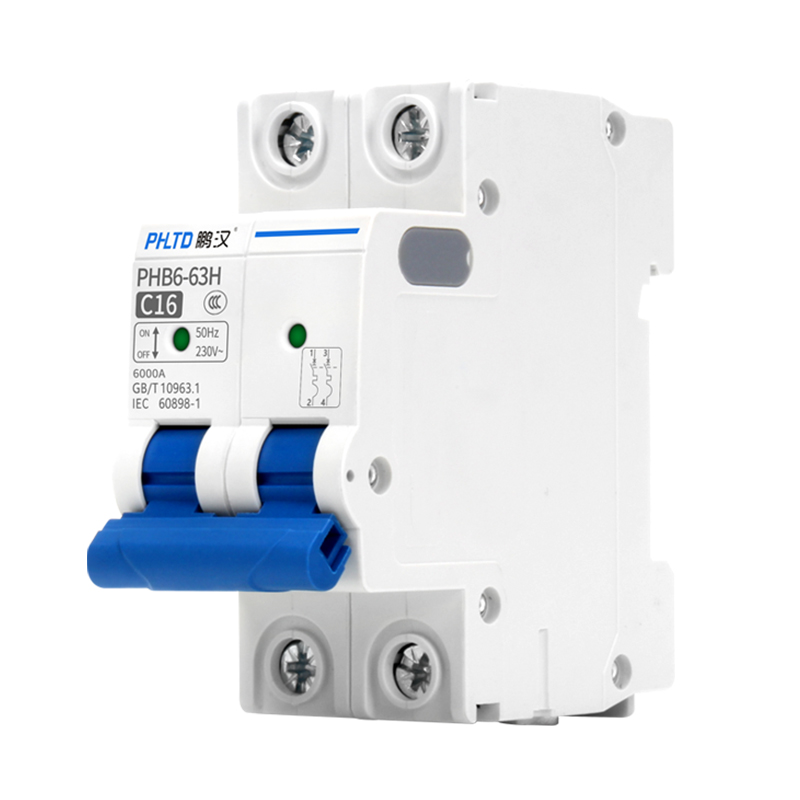

| 2P Air Switch Product Parameter Table |
 |
| Product series |
PHB6LE-63H series |
| product name |
miniature circuit breaker |
| Product Features |
C Type |
| Number of product poles |
2P |
| Rated current |
16A/32A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection |
| product size |
36x77mm |
| 3P Air Switch Product Parameter Table |
 |
| Product series |
PHB6LE-63H series |
| product name |
miniature circuit breaker |
| Product Features |
C Type |
| Number of product poles |
3P |
| Rated current |
16A/32A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection |
| product size |
54x80mm |
| 4P Air Switch Product Parameter Table |
 |
| Product series |
PHB6LE-63H series |
| product name |
miniature circuit breaker |
| Product Features |
C Type |
| Number of product poles |
4P |
| Rated current |
16A/32A/63A |
| rated voltage |
400V |
| Connection |
Pressure plate wiring |
| Installation method |
DIN-Rail Mounting |
| Function |
Overload/short circuit protection |
| product size |
72x80mm |

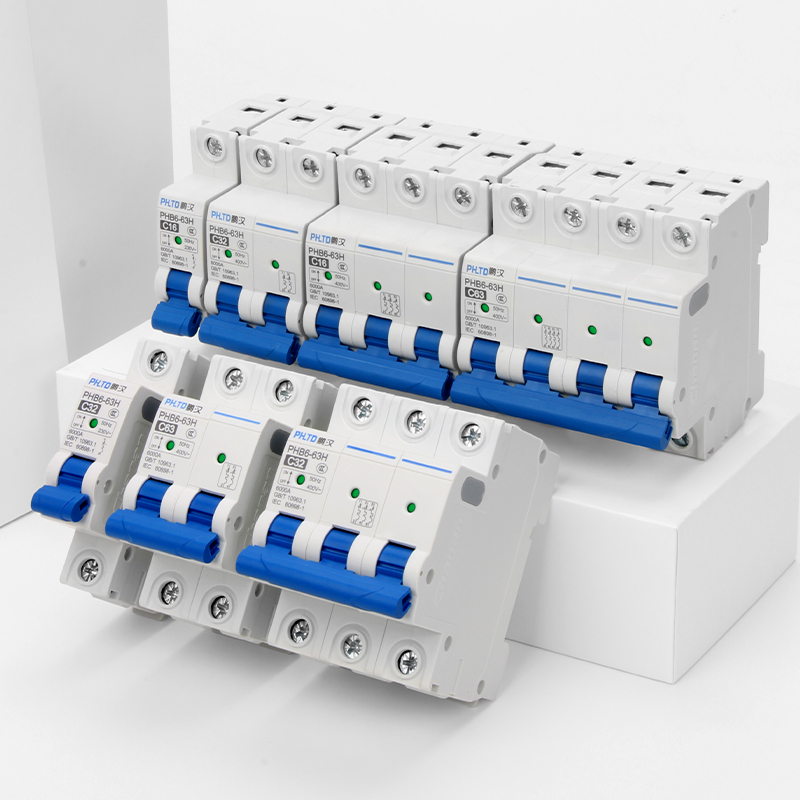

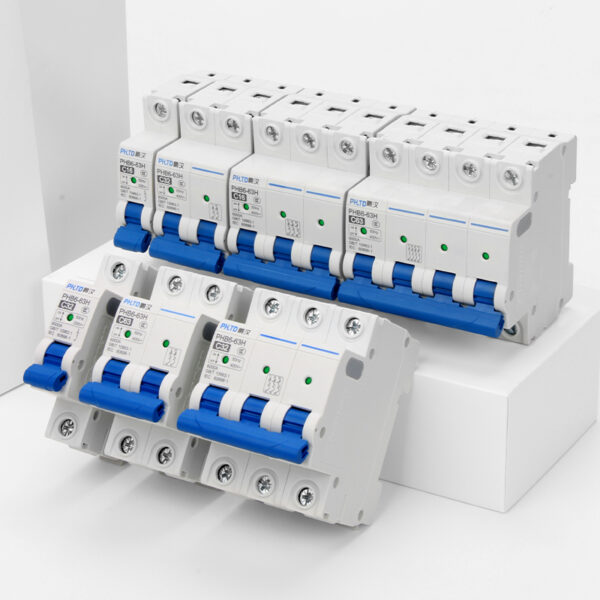

| name |
voltage |
Connection |

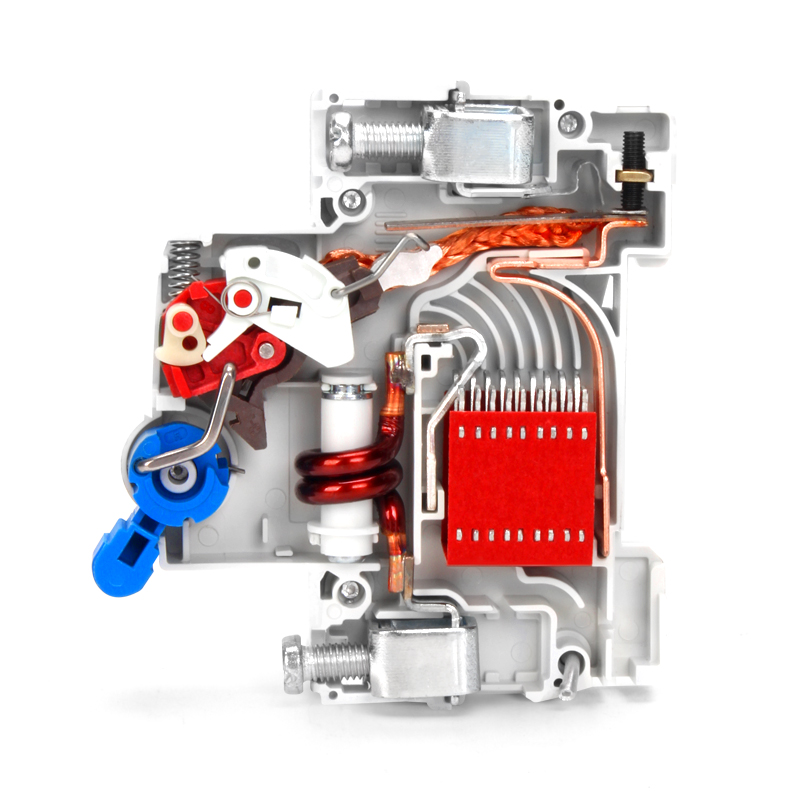

Arc extinguishing method |
Occupation (1 digit=18mm) |
| 1P air switch/circuit breaker |
230/400 |
Only connect to the live wire |
Magnetic blowing type |
1 person |
| 2P air switch/circuit breaker |
400 |
Grounding wire, neutral wire |
Magnetic blowing type |
2 person |
| 3P air switch/circuit breaker |
400 |
Three phase four wire electricity |
Magnetic blowing type |
3 person |
| 4P air switch/circuit breaker |
400 |
Three phase four wire electricity |
Magnetic blowing type |
4 person |
PHLTD Air Switch Miniature Circuit Breaker
The PHLTD air switch miniature circuit breaker (MCB) is a compact and reliable circuit protection device designed specifically for industrial and power distribution systems. It is especially suitable for 3-pole DIN rail installations. With a rated current of 32 amperes and a working voltage of 480 volts, it is designed to provide safety protection for three-phase circuits (L1, L2, L3) and neutral wires. Key features include:
- Efficient Protection: The PHLTD MCB uses a high-performance circuit breaker mechanism that can quickly disconnect the power supply in case of overload or short circuit, effectively preventing equipment damage and safety hazards such as fire.
- Three-Pole DIN Rail Installation: This circuit breaker is designed to be compact, allowing for easy and quick installation and removal on a DIN rail. This space-saving feature improves installation efficiency.
- 32 Ampere / 480 Volt Rating: Suitable for medium to high load power distribution systems, ensuring stable and reliable operation in various industrial environments.
- Impact Protection Terminal: Equipped with impact protection terminal blocks, it enhances the safety and stability of the wiring, reducing issues like loose connections due to vibration or improper handling.
- C-Type Tripping Curve: Featuring a C-type tripping curve, it is suitable for inductive loads and certain resistive loads, offering precise overload protection under different load conditions.
- Three-Phase Four-Wire System: Supports the connection of L1, L2, L3 three-phase lines and neutral wires, making it suitable for a variety of three-phase power distribution systems, ensuring the integrity and safety of power transmission.
- Wide Application: This MCB is widely used in power distribution scenarios that require high reliability and safety, such as in factory automation, commercial buildings, data centers, machinery and equipment, and lighting systems.
