High power rhinoceros socket

PHLTD Rhino Heavy Power Connector

Rhino Plug and Socket Series

The Rhino High-Power Socket Series is designed for demanding industrial and stage power applications. Engineered for high current loads, these sockets provide secure and stable connections, ensuring safe power distribution even under extreme conditions. Built with durable materials and robust construction, the Rhino series is ideal for environments where reliability and performance are critical.

They are designed for high-power electrical distribution, offering reliable performance and secure connections in:

  • Stage and event power systems
  • Industrial facilities and factories
  • Heavy-duty commercial power setups
High-Power Rhino Socket、Heavy-Duty Rhino Power Connector、PHLTD Rhino Series Electrical Socket、Waterproof Rhino Electrical Connector、Stage Power Rhino Plug System

Brand: Logo display

Non conductive material

fixing pins have advantages

More flame retardant insulation

performance

Copper alloy plug with high

conductivity Featuring a

dual cam design

High insulation, heat-resistant,

wear-resistant synthetic plastic

shell, convex The line design is

easier to grip and convenient to

operate

Clear line identification marks, easy to cut

Rhinoceros Insert Installation Diagram

Installing rhinoceros plugs in sequence is easier and simpler

1. Disassemble the

 rhinoceros plug accessory

2. Use a hex wrench to

loosen Open two screws

3. Cut the fan-shaped

copper sheetPut it inside

4. Thread the wires into the casing Connect the copper sheet and tighten the screw

5. Align the copper rod with the card slot Put it into the card holder

6. Place the fixed rod in the holeJust tap your heart in

Rotate clockwise 90 ° to lock

counterclockwise 90 ° to unlock plug

Technical Specifications

  • Rated Current: 200 Amperes, suitable for high-power lighting and audio systems.
  • Voltage Range: Compatible with various voltage standards across different countries.
  • Contact Material: High-quality copper alloy, minimizing resistance and energy loss.

Performance Features

  • Quick Connection: Secure locking mechanism for fast and safe connection.
  • Durability: Robust housing, resistant to impact and wear.
  • High Safety: Multiple protection mechanisms to ensure safe operation and prevent accidents.

Application Scope

  • Entertainment Venues: Ideal for powering stage lighting and sound systems at concerts, festivals, and other events.
  • Sports Arenas: Provides reliable power for lighting, audio, and video equipment in sports stadiums and arenas.
  • Film & TV Productions: Meets the high-power demands for film and television productions.
  • Industrial Applications: Suitable for powering high-power machinery in industrial plants and workshops.
PHLTD Female Socket Parameter TablePHLTD Public Socket Parameter Table
1. The female socket consists of an insulated plastic shell, an inner core bracket, and a copper core female speaker  Composed of needles, can be used in conjunction with male plugs
2. The casing comes in five colors for different power phases in different regions
3. The socket can be equipped with rubber strips or waterproof covers according to customer needs
4. The standard packaging comes with nuts, washers, and spring washers		1. The male socket consists of an insulated plastic shell, an inner core bracket, and a copper core male plug Composed of needles, it can be used in conjunction with a female plug.
2. The casing comes in five colors for different power phases in different regions
3. The socket can be equipped with rubber strips or waterproof covers according to customer needs
4. The standard packaging comes with nuts, washers, and spring washers

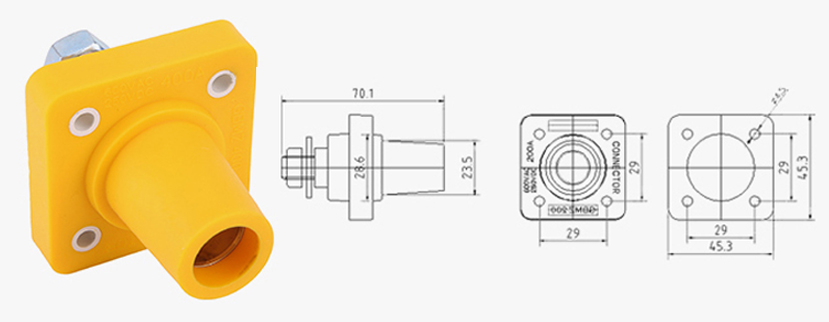

PHLTD 200A high-power Rhino single-core female socket connector for stage lighting and audio, with dimensions

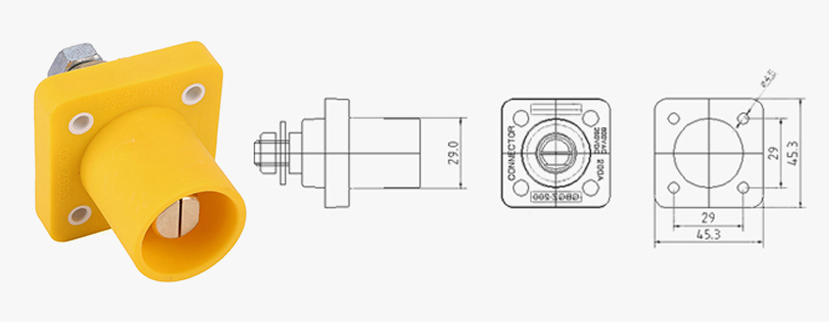

PHLTD 200A high-power single-core male Rhino connector for stage lighting and audio systems – dimension diagram

modeltypes ofcolourApplicable cable nominal cross-sectional areaConnectionmodeltypes ofcolourApplicable cable nominal cross-sectional areaConnection
GB-200MZ-YFemale socketyellow16-35mm²Screw fixationGB-200GZ-YPublic socketyellow16-35mm²Screw fixation
GB-200MZ-GFemale socketgreen16-35mm²Screw fixationGB-200GZ-GPublic socketgreen16-35mm²Screw fixation
GB-200MZ-RFemale socketred16-35mm²Screw fixationGB-200GZ-RPublic socketred16-35mm²Screw fixation
GB-200MZ-BFemale socketblue16-35mm²Screw fixationGB-200GZ-BPublic socketblue16-35mm²Screw fixation
GB-200MZ-BKFemale socketblack16-35mm²Screw fixationGB-200GZ-BKPublic socketblack16-35mm²Screw fixation
PHLTD Male Plug Parameter TablePHLTD Female Plug Parameter Table
1. The female plug consists of an insulated plastic shell, an inner core bracket, and a copper core female plug Composed of needles, it can be used in conjunction with male plugs or sockets.
2. The casing comes in five colors for different power phases in different regions
The plug housing is equipped with an anti slip plastic handle for easy use.
3. The tail adopts pre cut cable identification for different specifications of cables to choose from.
4. The standard packaging includes pressure screws, steel sheets, and fixed flame-retardant pins.		1. The male plug consists of an insulated plastic shell, an inner core bracket, and a copper core male plug Composed of needles, it can be used in conjunction with a female plug or socket.
2. The casing comes in five colors for different power phases in different regions
The plug housing is equipped with an anti slip plastic handle for easy use.
3. The tail adopts pre cut cable identification for different specifications of cables to choose from.
4. The standard packaging includes pressure screws, steel sheets, and fixed flame-retardant pins.

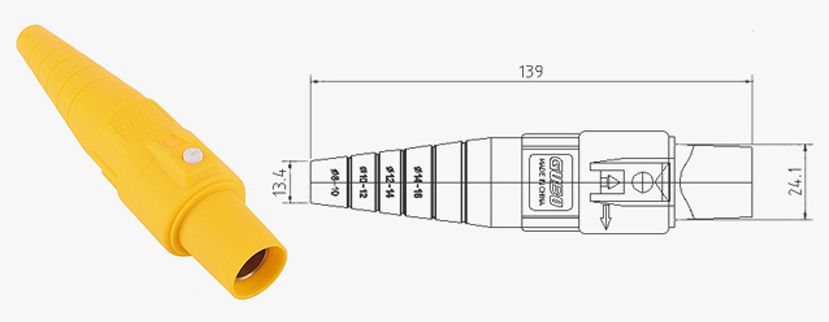

PHLTD 200A high-power single-core female Rhino connector for stage lighting and audio

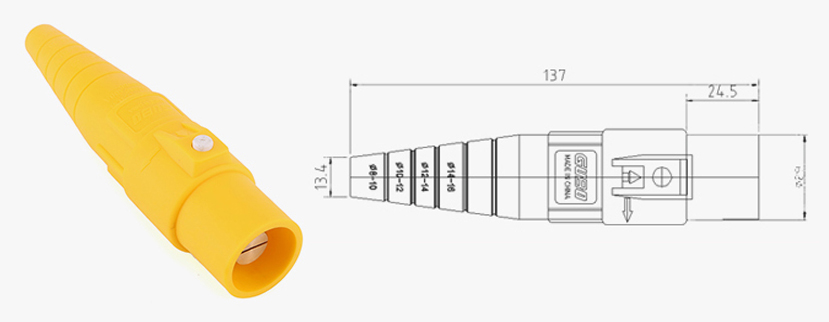

PHLTD 200A high-power professional stage lighting and audio rhinoceros single core high current cable connector male plug size diagram
modeltypes ofcolourApplicable cable nominal cross-sectional areaConnectionmodeltypes ofcolourApplicable cable nominal cross-sectional areaConnection
GB-200MT-YFemale plugyellow16-35mm²Screw fixationGB-200GT-YPublic socketyellow16-35mm²Screw fixation
GB-200MT-GFemale pluggreen16-35mm²Screw fixationGB-200GT-GPublic socketgreen16-35mm²Screw fixation
GB-200MT-RFemale plugred16-35mm²Screw fixationGB-200GZ-RPublic socketred16-35mm²Screw fixation
GB-200MT-BFemale plugblue16-35mm²Screw fixationGB-200GT-BPublic socketblue16-35mm²Screw fixation
GB-200MT-BKFemale plugblack16-35mm²Screw fixationGB-200GT-BKPublic socketblack16-35mm²Screw fixation
