Extremely durable wall-mounted distribution box

Extremely durable wall-mounted distribution box

PHBG Series

PHBG Series includes a variety of models, from small to large. The enclosures are made of high-quality rubber, impact-resistant, and fully double-insulated. They are suitable for both indoor and outdoor use.

The enclosures have a wide range of potential applications:

  • Industrial factories
  • Workshops
  • Construction sites
  • Yacht docks
  • Campsites
Industrial Wall-mounted Distribution Panel Wall-mounted Power Distribution Box for Workshops and Factories Heavy-duty Electrical Cabinet for Construction Sites Outdoor Wall-mounted Power Box for Industrial Applications

Our delivery time is about a week

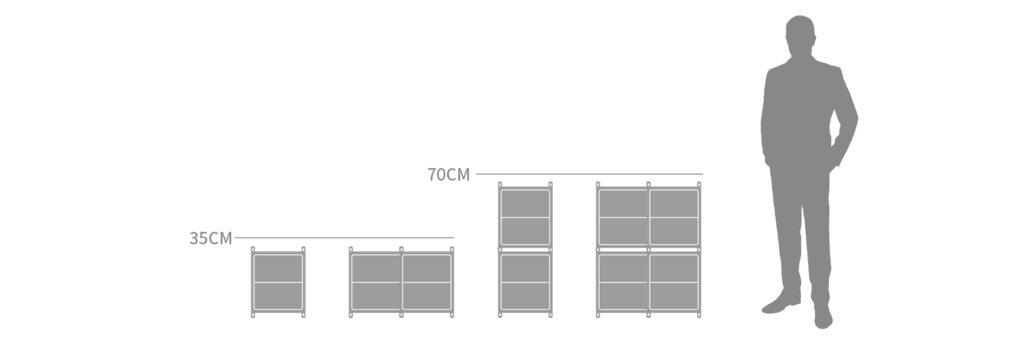

Wall-mounted Box / Splicing Box Size Preview Diagram
Stage distribution box wiring diagram, displaying power input, output, and connection methods

According to the requirements, we will create your distribution box separately. If you want an empty box, I can make a hole for you for free.

Contact Us

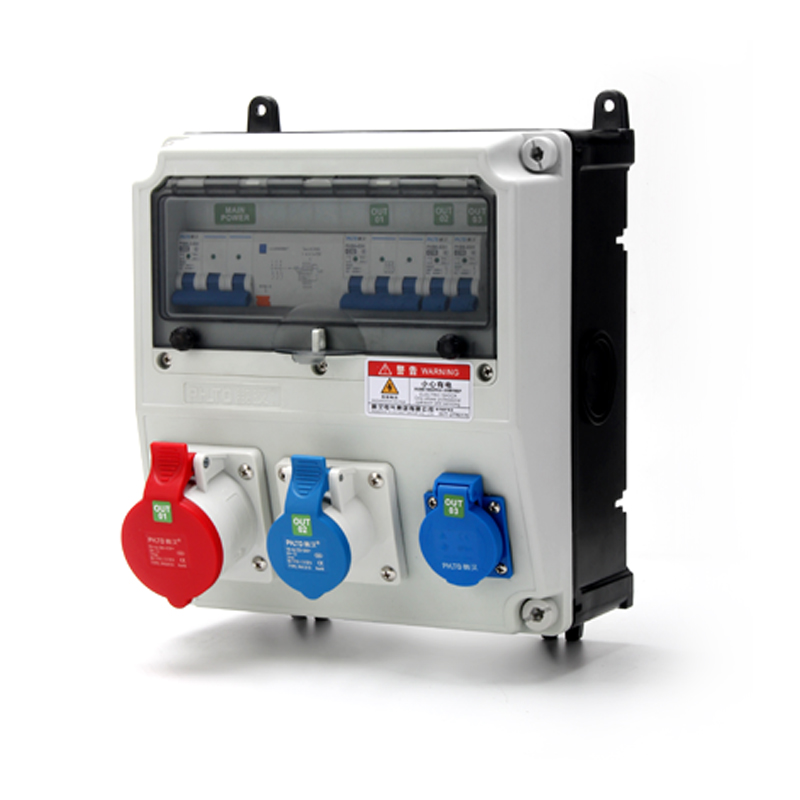

1PHLTD splicing distribution box industrial socket 4P 32A-3P 16A with leakage protection and switch box size 350X270X165mm

Industrial socket:4P 32A*1  3P 16A*1

220V five-hole 10A * 1

Leakage protector:3P+N 63A*1

Air Switch:1P 32A*1  1P 16A*2

Approx：$230

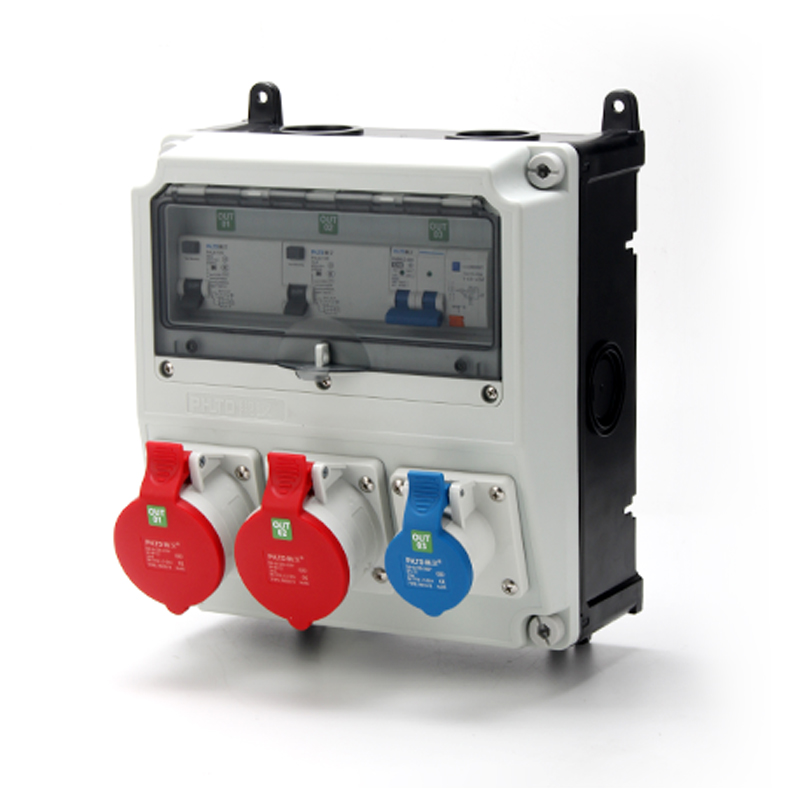

2PHLTD splicing distribution box industrial socket 5P 32A-3P 16A with leakage protection box size 350X270X165mm

Industrial socket:5P 32A*2  3P 16A*1

Leakage protector:3P+N 32A*2  2P 16A*1

Approx：$230

3PHLTD splicing distribution box industrial socket 5P 32A-5P 16A with leakage protection box size 350X270X165mm

Industrial socket:5P 32A*1  5P 16A*1

Leakage protector:3P+N 32A*1  3P+N 16A*1

Approx：$230

4PHLTD splicing distribution box industrial socket 5P 32A-3P 16A with leakage protection and air switch box size 350X270X165mm

Industrial socket:5P 32A*1  3P 16A*2

Leakage protector:3P+N 32A*1

Air Switch:2P 16A*1

Approx：$230

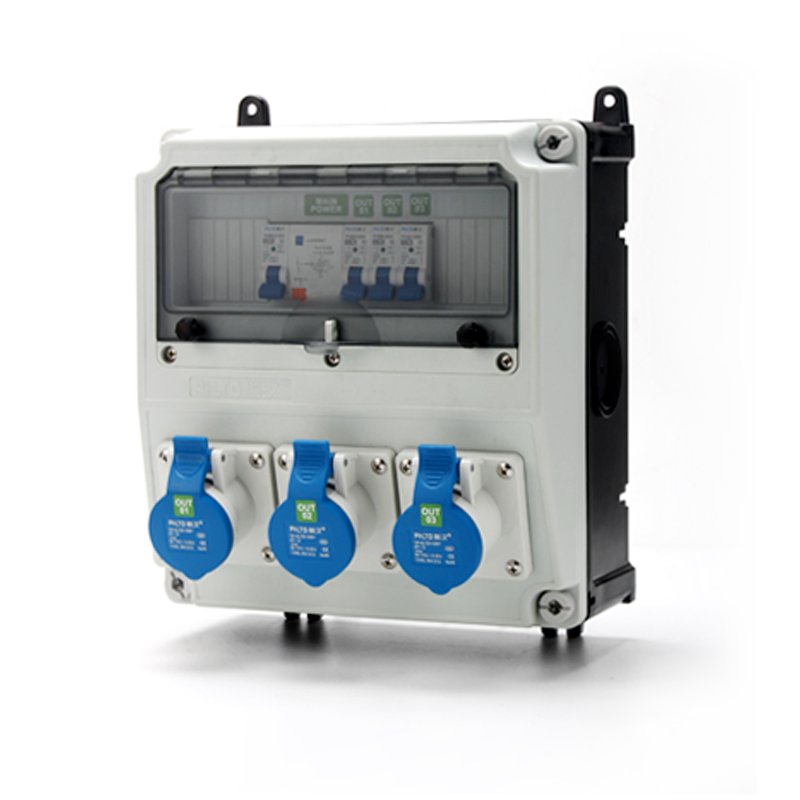

5PHLTD splicing distribution box industrial socket 3P 16A with leakage protection and air switch box size 350X270X165mm

Industrial socket:3P 16A*3

Leakage protector:1P+N 63A*1

Air Switch:1P 16A*3

Approx：$230

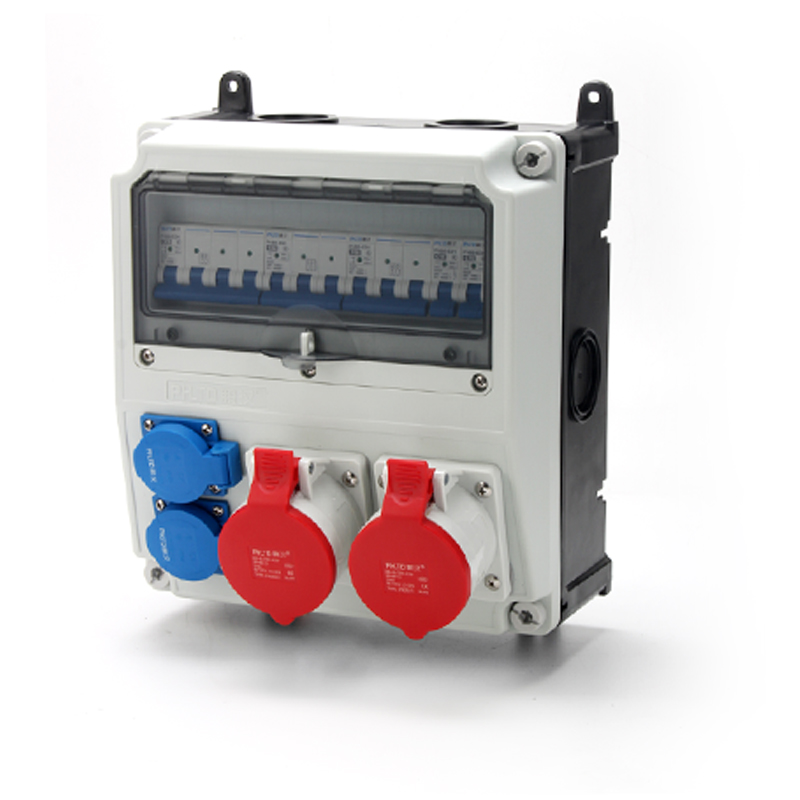

6PHLTD splicing distribution box industrial socket 5P 32A-220V five hole 10A with air switch box size 350X270X165mm

Industrial socket:220V five hole 10A * 2

220V five-hole 10A * 2

Air Switch:4P 63A*1  3P 32A*2  1P 16A*2

Approx：$230

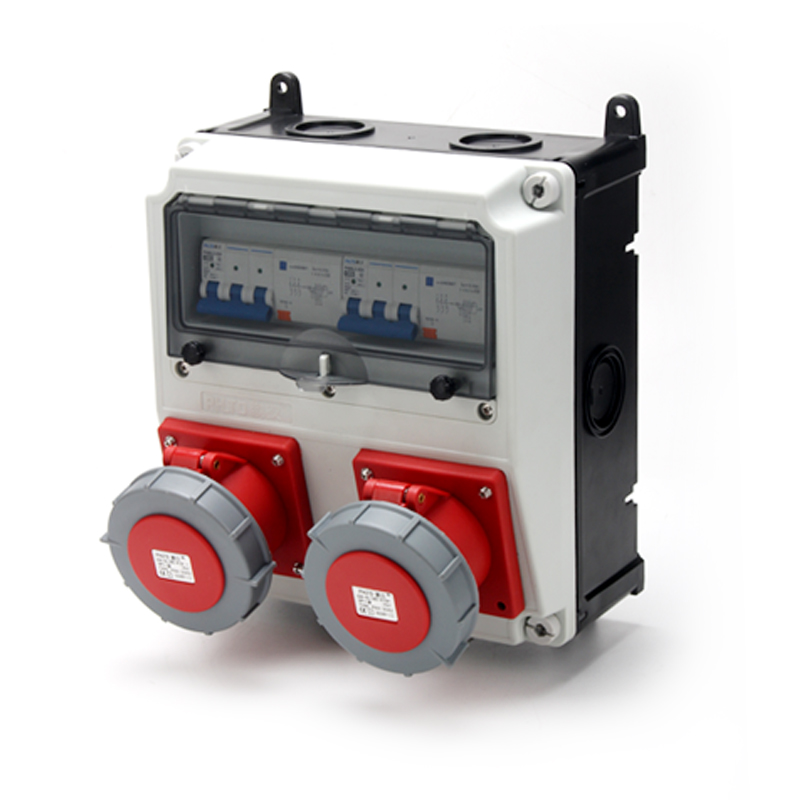

7PHLTD Splicing Distribution Box Industrial Socket 4P 63A with Leakage Protection Box Size 350X270X165mm

Industrial socket:4P 63A*2

Leakage protector:3P 63A*2

Approx：$230

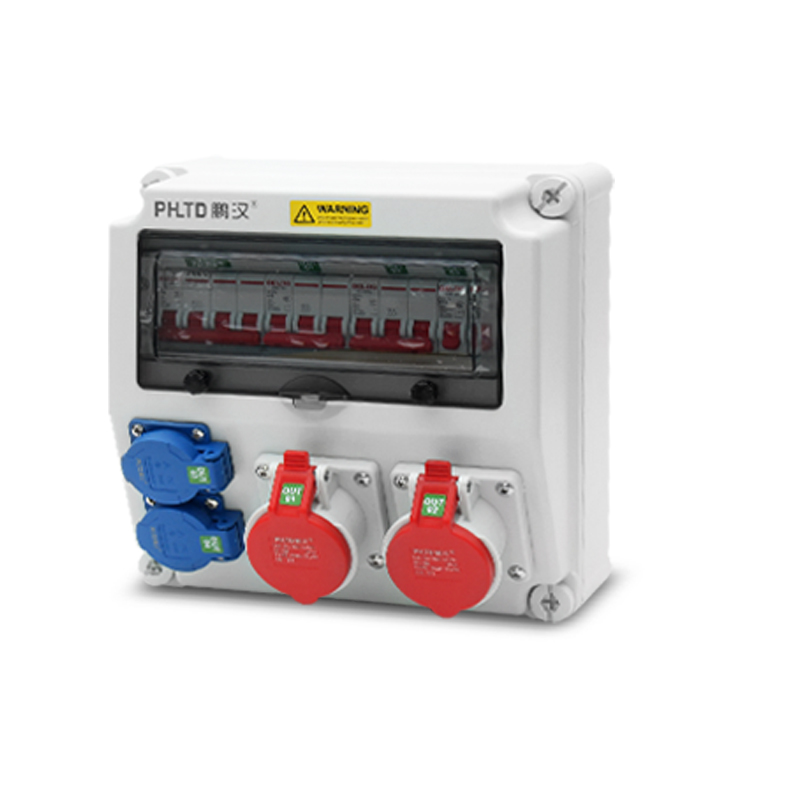

1PHLTD IP44 waterproof wall mounted power maintenance box 5P 16A and 5P 10A national standard industrial socket with air switch size 280x280x155mm

Industrial socket:5P 16A*2

5P 10A National Standard * 2

Air Switch:3P 40A*1   3P 16A*2  1P 16A*2

Approx：$230

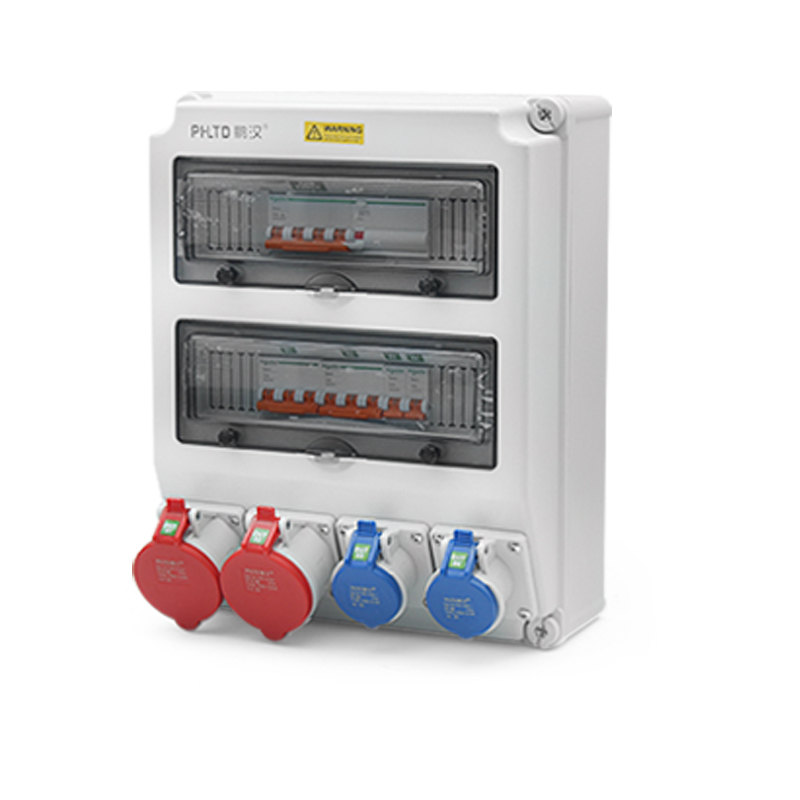

2PHLTD IP44 waterproof wall mounted power maintenance box 5P 32A and 3P 16A industrial sockets with leakage circuit breaker size 430x330x175mm

Industrial socket:5P 32A*2  3P 16A*2

Leakage protector:3P+N 63A*1

Air Switch:3P 32A*2  1P 16A*2

Approx：$230

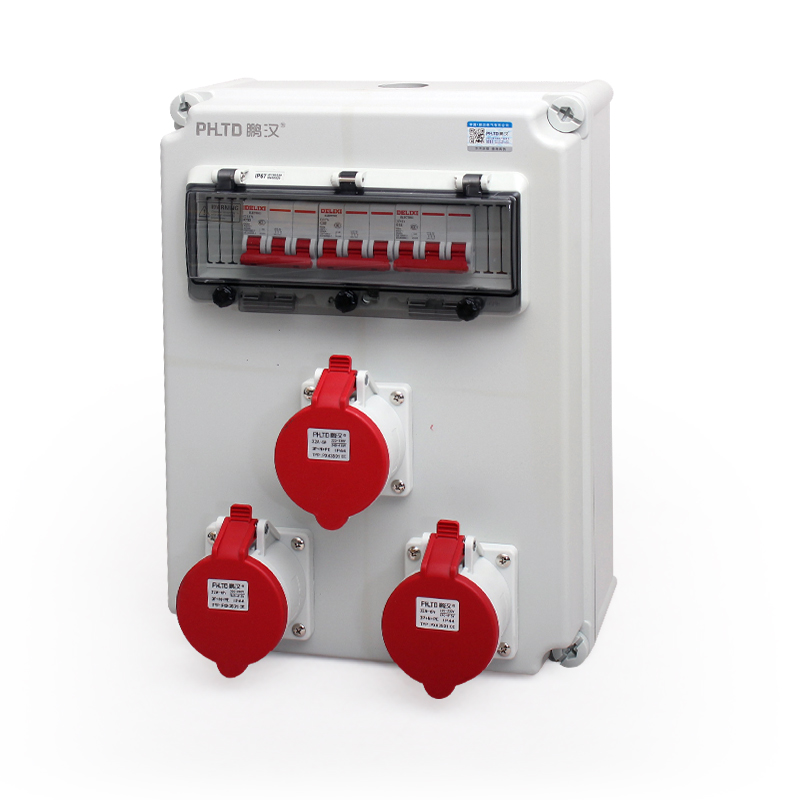

3PHLTD IP44 waterproof wall mounted power maintenance box 5P 32A industrial socket with air opening size 400x300x160mm

Industrial socket:5P 32A*3

Air Switch:3P 63A*1  3P 32A*3

Approx：$230

4PHLTD IP44 waterproof wall mounted power maintenance box 5P 63A and 3P 16A industrial sockets with air switch leakage size 400x300x160mm

Industrial socket:5P 63A*2  3P 16A*2

Air Switch:3P 100A*1

Leakage protector:3P+N 63A*1  1P+N 32A*1

Approx：$230

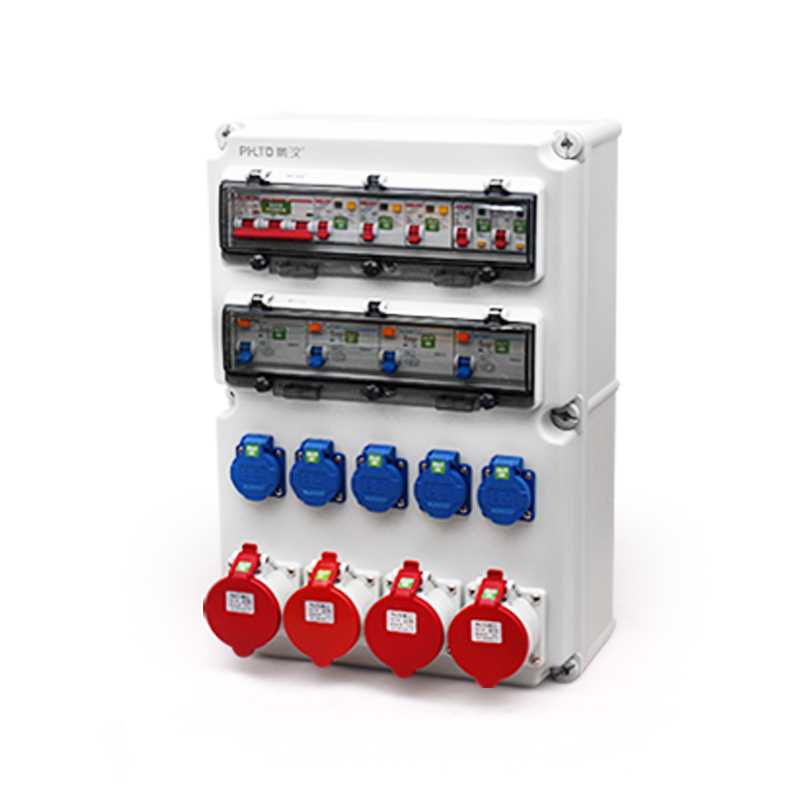

5PHLTD-IP44-waterproof-wall-mounted-power-maintenance-box-5P-32A-and-3P-10A-national-standard-industrial-socket-with-air-switch-leakage-size-540x360x180mm

Industrial socket:5P 32A*4

3P 10A National Standard * 5

Air Switch:3P 100A*1

Leakage protector:1P+N 16A*5

3P+N 32A*4

Approx：$230

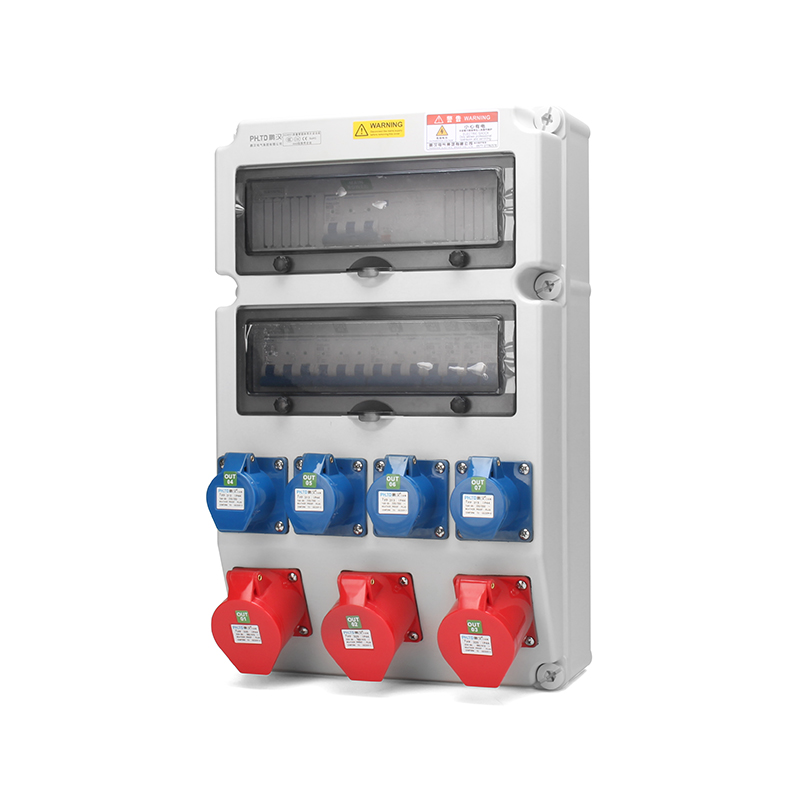

6PHLTD IP44 waterproof wall mounted power maintenance box 5P 32A and 3P 10A national standard industrial socket with air switch leakage size 530x330x175mm

Industrial socket:5P 32A*3

5P 10A National Standard * 4

Leakage protector:3P+N 63A*1

Air Switch:3P 32A*3  1P 16A*4

Approx：$230

Main Parameters:

  • Material: Polycarbonate (PC) engineering plastic, offering excellent UV resistance, weather resistance, and impact resistance. It can be used for extended periods in harsh environments without aging or deformation.
  • Protection Level: IP44, effectively preventing external damage from dust and water mist, ensuring the safe and stable operation of internal electrical components.
  • Structure: Modular splicing design, making maintenance and repairs more convenient. There is no need for complete disassembly; internal components can be quickly replaced or upgraded.
  • Size Specifications: Multiple sizes available, with customized services to meet different spatial layout requirements.
  • Color: Standard color is gray, but can be customized according to customer needs.
  • Carrying Capacity: Depending on the specific configuration, it can support electrical components of different power ratings.

Usage Scenarios:

  • Industrial Production Line: Serves as a control cabinet or distribution center, centrally managing various electrical equipment along the production line.
  • Outdoor Work Areas: Suitable for locations such as wind farms, oil fields, docks, etc., providing waterproof and dustproof power distribution and maintenance solutions.
  • Aerospace Facilities: Used in aircraft maintenance garages, spacecraft testing centers, and other high-safety electrical environments.
  • Research Laboratories: Functions as the power control and management center for experimental equipment, ensuring safety and stability throughout the experimental process.

Product configurations can be customized according to your needs
