European Standard Rhino Socket
PHLTD European Rhino Industrial Socket
Rhino Series EU Standard Power Socket
The PHLTD European Rhino Industrial Socket is designed to meet EU standards for high-power electrical connections in industrial and stage environments. Engineered for single-core high current applications, this socket ensures safe, reliable, and stable power distribution. Its rugged construction and compliance with European regulations make it ideal for demanding use cases where both performance and safety are essential.
They are designed to meet European standards for high-power electrical distribution, offering reliable performance and secure connections in:
- Stage and event power systems
- Industrial facilities and factories
- European-standard commercial and construction power setups
European Standard Rhino Socket、PHLTD European Rhino Series Socket、European Rhino Industrial Power Connector、Waterproof European Rhino Socket、Stage & Industrial EU Standard Rhino Socket
| PHLTD socket parameters table | ||||
 | ||||

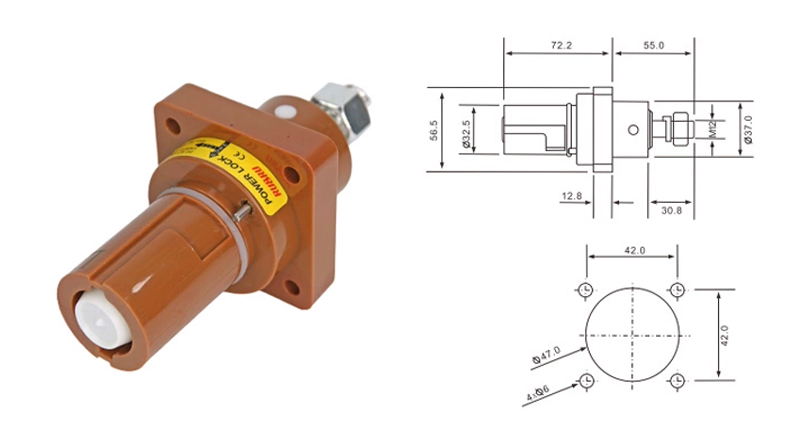

| 1. The conductive socket connection point is composed of a hard plastic head, which is connected to the wire and the female plug on the socket 2. Comes with M12 stainless steel wire and strontium mother, and also comes with gasket parts for easy wiring 3. The shell has five colors and different phase markings, and different phases cannot be connected to prevent misconnection 4. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents 5. IP 2X protection level, providing safe use to prevent electric shock 6. The size of the four side screw fixing holes is Dia5,5 mm; Suitable for open seat installation | ||||
 | ||||

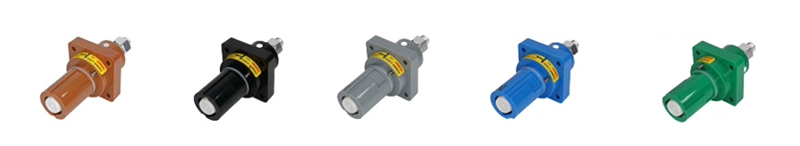

| Model | types of | Corresponding line number | colour | Screw and nut specifications |
| RPGZ400-BN | Electric socket on the seat | line 1 | brown | M12 |
| RPGZ400-BK | Electric socket on the seat | line 2 | black | M12 |
| RPGZ400-GY | Electric socket on the seat | line 3 | grey | M12 |
| RPGZ400-BU | Electric socket on the seat | zero line | blue | M12 |
| RPGZ400-GN | Electric socket on the seat | Ground wire | green | M12 |
| PHLTD socket parameters table | ||||
 | ||||

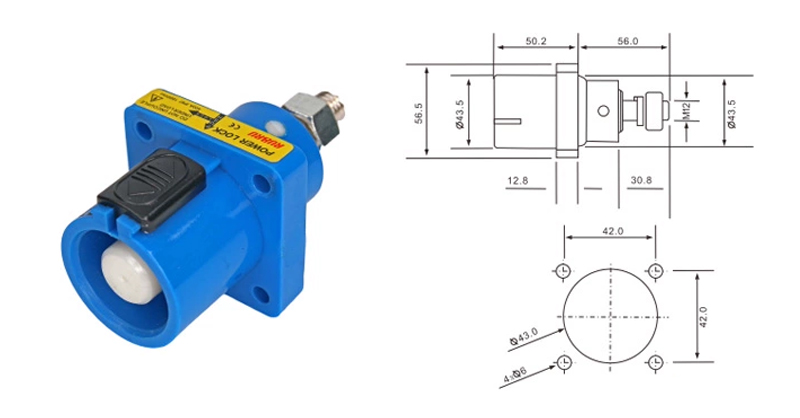

| 1. The conductive socket connection point is composed of a hard plastic head, which is connected to the male plug on the wire 2. Comes with M12 silver wire and nut, and additional gasket parts for easy wiring and use 3. The shell has five colors and different phase markings, and different phases cannot be connected to prevent misconnection 4. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents 5. IP 2X protection level, providing safe use to prevent electric shock 6. The size of the four side screw fixing holes is Dia5,5 mm; Suitable for open seat installation 7. The spring safety pin can firmly press against the groove of the outlet pin to prevent the connection from loosening | ||||
 | ||||

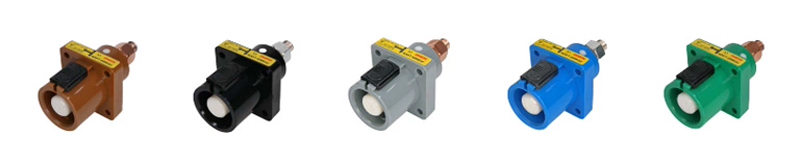

| Model | types of | Corresponding line number | colour | Screw and nut specifications |
| RPMZ400-BN | On board electric broadcasting station | line 1 | brown | M12 |
| RPMZ400-BK | On board electric broadcasting station | line 2 | black | M12 |
| RPMZ400-GY | On board electric broadcasting station | line 3 | grey | M12 |
| RPMZ400-BU | On board electric broadcasting station | zero line | blue | M12 |
| RPMZ400-GN | On board electric broadcasting station | Ground wire | green | M12 |

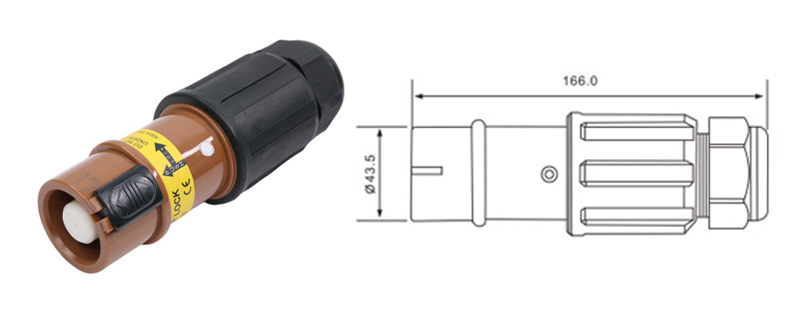

| PHLTD Online Electrical Male Plug Parameter Table | |||||||
 | |||||||
| Applicable current | Applicable voltage | Test maximum voltage | Test maximum voltage | insulation resistance | Lead resistance | Docking dustproof level | Needle material |
| 400A (using 120mmsq single core cable) | 1000V | 4000V | Up to 35.5kA | >5000M Ohmsat 500 Vac | <0.1m Ohms | IP67 | Silver plated brass |
| External material | Fixed tip material | operation temperature | wiring method | Wire clamping torque | Number of pulling cycles | Flame retardant grade | authentication |
| Impact resistant and flame-retardant plastic | plastic steel | -45-85°C | Two stop payment screws are fixed | 10.5N/meter (minimum value) | >500 times | UL94.VO | CE&ROHS certification |
| 1. The conductive plug connection point is composed of a hard plastic head, which is connected through the slot wire on the plug 2. Comes with anti slip rubber handle for easy use 3. The shell has five colors and different phase markings, and different phases cannot be connected to prevent misconnection 4. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents 5. IP 2X protection level ensures safe use to prevent electric shock 6. The M40 cable head is equipped with rubber rings with inner diameters of 18&26 mm to fit power cords with diameters of 19-28mm 7. Standard packaging comes with R120 terminal metal sleeve: 16.50mm (inner diameter) x 32mm (length) for 120 mmsq wire diameter use 8. Comes with short plastic steel fixing tips (please do not reuse the fixing tips to avoid exposure to electric shock after damage) | |||||||
 | |||||||

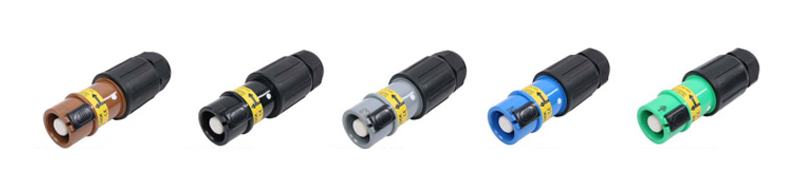

| Model | types of | Corresponding line number | colour | Suitable for wire diameter | Wire head size | R120 silver plated copper terminal
| |
| RPG400-BN | Online electrical plug | line 1 | brown | 120mmsq wire diameter | M40/1928mm | ||
| RPG400-BK | Online electrical plug | line 2 | black | 120mmsq wire diameter | M40/1928mm | MV40 cable head provides inner diameter
| |
| RPG400-GY | Online electrical plug | line 3 | grey | 120mmsq wire diameter | M40/1928mm | ||
| RPG400-BU | Online electrical plug | zero line | blue | 120mmsq wire diameter | M40/1928mm | Seat mounted electrical male plug with fixed pin
| |
| RPG400-GN | Online electrical plug | Ground wire | green | 120mmsq wire diameter | M40/1928mm | ||

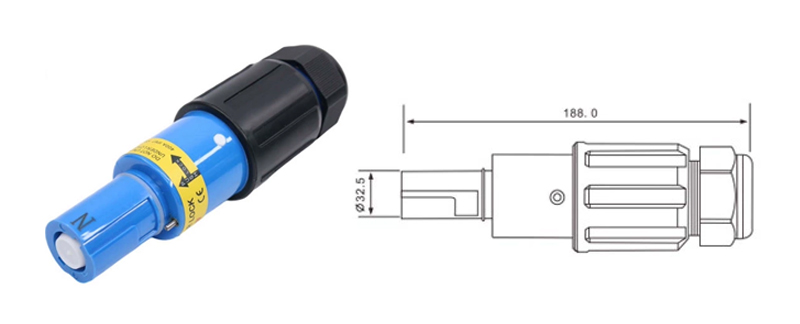

| PHLTD Online Female Plug Parameter Table | |||||||
 | |||||||
| Applicable current | Applicable voltage | Test maximum voltage | Test maximum voltage | insulation resistance | Lead resistance | Docking dustproof level | Needle material |
| 400A (using 120mmsq single core cable) | 1000V | 4000V | Up to 35.5kA | >5000M Ohmsat 500 Vac | <0.1m Ohms | IP67 | Silver plated brass |
| External material | Fixed tip material | operation temperature | wiring method | Wire clamping torque | Number of pulling cycles | Flame retardant grade | authentication |
| Impact resistant and flame-retardant plastic | plastic steel | -45-85°C | Two stop payment screws are fixed | 10.5N/meter (minimum value) | >500 times | UL94.VO | CE&ROHS certification |
| 1. The conductive plug connection point is composed of a hard plastic head, which is connected through the slot wire on the plug 2. Comes with anti slip rubber handle for easy use 3. The shell has five colors and different phase markings, and different phases cannot be connected to prevent misconnection 4. The top of the guide needle is covered with a hard plastic head to prevent electric shock accidents 5. IP 2X protection level ensures safe use to prevent electric shock 6. The M40 cable head is equipped with rubber rings with inner diameters of 18&26 mm to fit power cords with diameters of 19-28mm 7. Standard packaging comes with R120 terminal metal sleeve: 16.50mm (inner diameter) x 32mm (length) for 120 mmsq wire diameter use 8. The spring safety pin can firmly press against the groove of the outlet pin to prevent the connection from loosening 9. Comes with short plastic steel fixing tips (please do not reuse the fixing tips to avoid exposure to electric shock after damage) | |||||||
 | |||||||

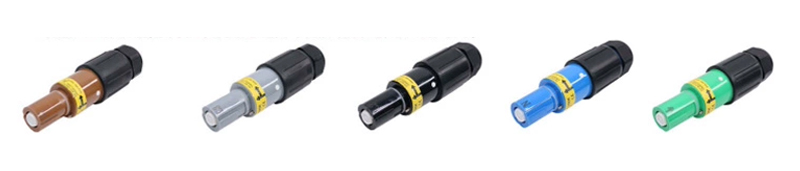

| Model | types of | Corresponding line number | colour | Suitable for wire diameter | Wire head size | R120 silver plated copper terminal
| |
| RPM400-BN | Online female plug | line 1 | brown | 120mmsq wire diameter | M40/1928mm | ||
| RPM400-BK | Online female plug | line 2 | black | 120mmsq wire diameter | M40/1928mm | MV40 cable head provides inner diameter
| |
| RPM400-GY | Online female plug | line 3 | grey | 120mmsq wire diameter | M40/1928mm | ||
| RPM400-BU | Online female plug | zero line | blue | 120mmsq wire diameter | M40/1928mm | Seat mounted electrical male plug with fixed pin
| |
| RPM400-GN | Online female plug | Ground wire | green | 120mmsq wire diameter | M40/1928mm | ||
Connector Overview
- Rated Voltage: 380V, designed to meet the high-power electrical demands of industrial-grade equipment and stage lighting.
- Rated Current: Supports current transmission from 150A to 400A, ensuring stable operation in high-demand environments such as stage lighting and generator vehicles.
- Plug Type: Features a rhinoceros head design, known for exceptional durability and ease of use, allowing for quick and reliable connections and disconnections.
Design/Material
- Single Core Design: Minimizes energy loss, enhances transmission efficiency, and simplifies both installation and maintenance.
- Material Selection: Utilizes high-quality conductive and insulating materials to ensure the safety and reliability of electrical connections.
- Durability of Insertion & Unplugging: Capable of withstanding up to 10,000 insertions and removals, making it suitable for high-frequency use.
Application Scenarios
- Stage Lighting: Ideal for large-scale concerts, theater performances, and other events that require high-power stage lighting. Provides stable high-current transmission for bright, high-quality lighting.
- Generator Vehicles: Perfect for providing reliable electrical connections in outdoor temporary power supplies, emergency rescue operations, and other on-site applications, ensuring continuous power supply.
- Industrial Applications: Designed to meet the need for stable and reliable power supply in industrial environments such as factories and workshops, ensuring smooth and efficient operation of production lines.
- Construction Sites: Facilitates easy and quick power connections on construction sites, improving construction efficiency with frequent equipment movement and power-ups.
