Compact Functional Distribution Box

Compact Functional Rubber Distribution Box

PHST Series

The PHST series consists of enclosures that stand for quality, safety, and functionality.This series offers a variety of applications, including:

  • Distribution boxes up to 125A
  • Coupling boxes
  • Splitter boxes
  • Transition boxes

The protective device can be installed externally or internally.

Compact distribution boxes for industrial, construction sites, stage performances, and event lighting power management.

Our delivery time is about a week

Available in multiple colors:

Stage distribution box wiring diagram, displaying power input, output, and connection methods

According to the requirements, we will create your distribution box separately. If you want an empty box, I can make a hole for you for free.

Contact Us

1PHLTD portable industrial box 5P32A concealed plug 4 industrial sockets with air switch and leakage protection

Concealed plug：5P 32A*1

Industrial socket：3P 16A*2    5P 32A*2

Air Switch：3P 32A*2

Leakage protector：1P+N 32A

Approx：$230

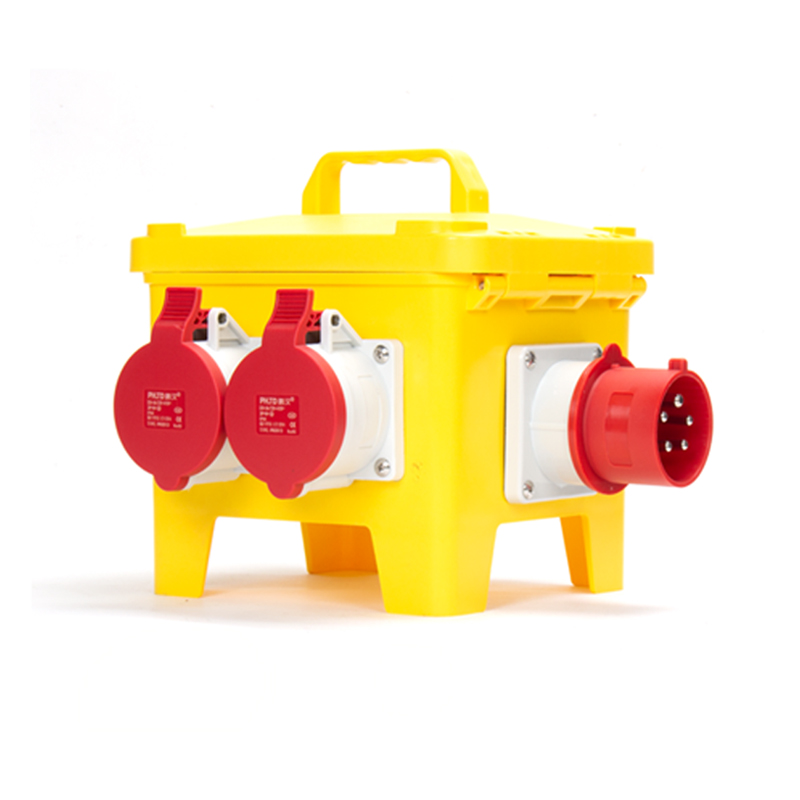

2PHLTD portable industrial box 5P32A concealed plug 220V national standard 5-hole 10A industrial socket and 5P32A with air switch and leakage protection

Concealed plug：3P 32A*1

Industrial socket：3P 32A*2

220V national standard 5-hole 10A*2

Leakage protector：1P+N 32A*1

Approx：$230

3PHLTD portable industrial box 5P63A concealed plug 3P16A industrial socket with main circuit leakage and opening circuit breaker

Concealed plug：5P 63A*1

Industrial socket：3P 16A*12

Main circuit leakage protector：3P+N 63A*1

Open air switch：1P 16A*12

Approx：$230

4PHLTD Handheld Industrial Box 5P63A Concealed Plug 8 Industrial Sockets with Main Switch and Open Circuit Leakage

Concealed plug：5P 63A*1

Industrial socket：5P 32A*4  3P 16A*2

220V national standard 5-hole 10A*2

Open circuit leakage protector：

3P+N 32A*4  1P+N 16A*4

Approx：$230

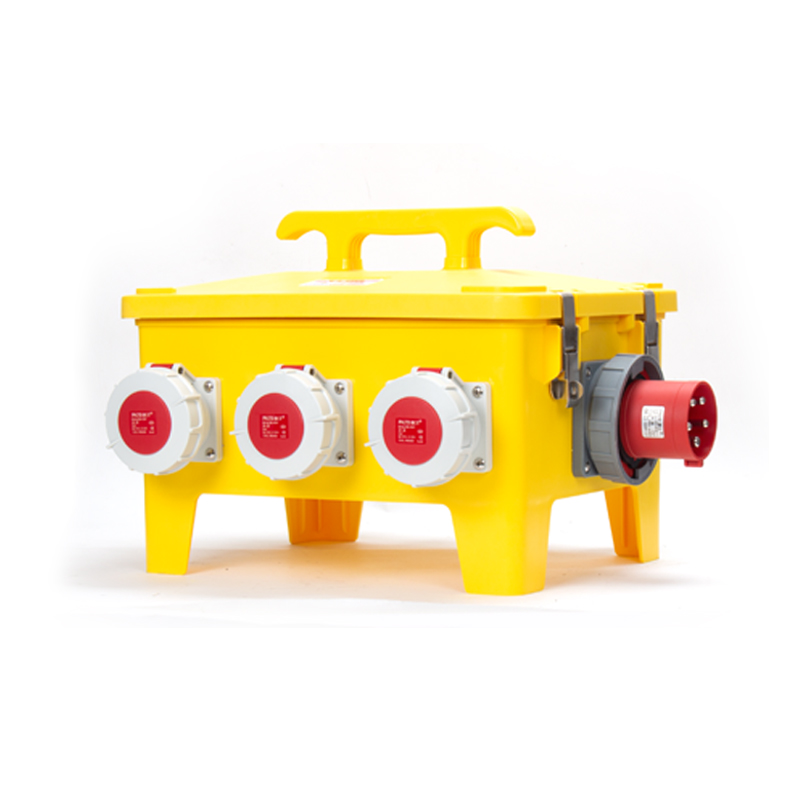

5PHLTD Handheld Industrial Box 5P63A Concealed Plug 5P32A Industrial Socket and 3P16A with Main Circuit Breaker and Opening Leakage

Concealed plug：5P 63A*1

Industrial socket：5P 32A*3   3P 16A*3

Main gate air switch：3P 63A*1

Open circuit leakage protector：

3P+N 32A*3  1P+N 16A*3

Approx：$230

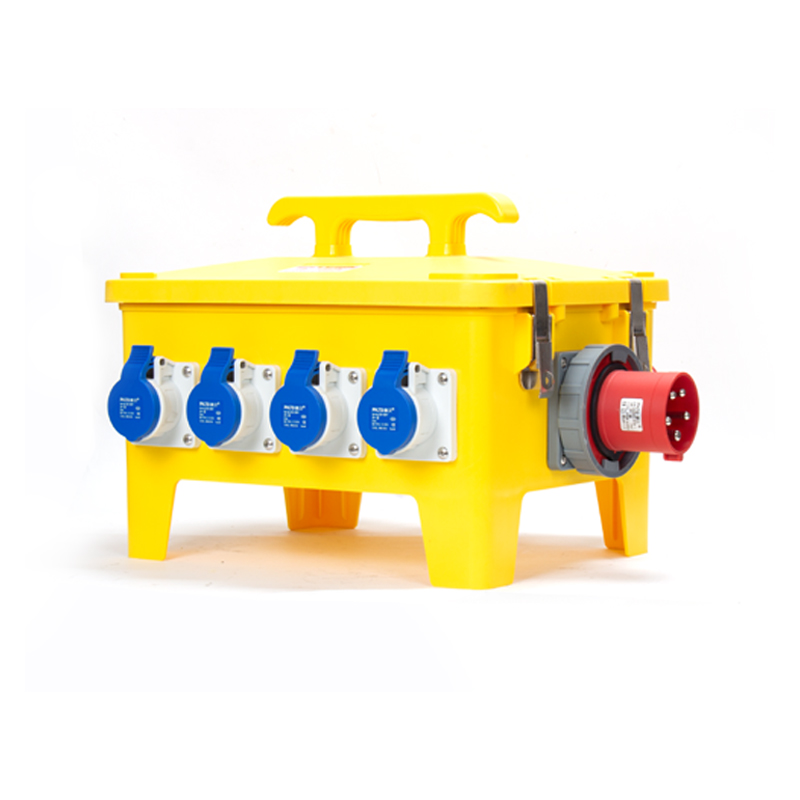

6PHLTD portable industrial box 5P63A concealed plug 5P32A industrial socket and 3P16A with main circuit breaker and circuit breaker leakage outer box size 340X420X340mm

Concealed plug：5P 63A*1

Industrial socket：5P 32A*4  3P 16A*4

Main gate air switch：3P 63A*1

Open circuit leakage protector：

3P+N 32A*4  1P+N 16A*4

Approx：$230

Main parameters:

  • Shell material: ABS engineering plastic, high-strength, impact-resistant, and corrosion-resistant.
  • Color: Yellow, enhances recognition and strengthens safety warnings.

Protection level: IP44, effectively resists external damage such as rainwater and dust.

  • Configuration customization: Supports multiple internal configuration customizations, including different specifications for power sockets, circuit breakers, leakage protectors, etc., to meet various construction needs.

Portability: Designed with a comfortable handle for easy mobility.

  • Safety features: Built-in multiple safety protection devices ensure worry-free operation during power distribution.

Usage scenarios:

  • Aviation construction site: Used for airport runway maintenance, aircraft maintenance garages, and other areas, providing a stable power supply for various maintenance equipment and tools.
  • Construction site: Serves as a temporary power distribution center, supporting high-power electricity needs for tower cranes, concrete mixers, lighting equipment, etc.
  • Outdoor work: Such as road construction, bridge construction, municipal maintenance, etc., providing convenient power access for electric tools, generators, and other equipment.
  • Temporary activities: Temporary venues for sports events, music festivals, exhibitions, etc., quickly set up power supply systems to ensure the smooth progress of activities.
