Black Beam Socket

Black Beam Power Outlet

Black Beam Outlet Series

The Black Beam Socket Series offers safe, reliable power connections for stage lighting and industrial use. Designed for durability and secure performance, these sockets ensure compatibility with beam lighting systems in demanding environments.

The Black Beam Socket Series is designed for high-power stage lighting and industrial applications, ensuring reliable performance and secure connections in:

  • Stage and event lighting systems using beam lighting connectors
  • Industrial machinery and equipment requiring beam power connections
  • Commercial and construction sites with high-performance lighting setups
Black Beam Socket Series、PHLTD Black Beam Series Industrial Socket、Black Beam Power Socket Connector、Waterproof Black Beam Socket
PHLTD Beam Waterproof Connector Socket Parameter Table

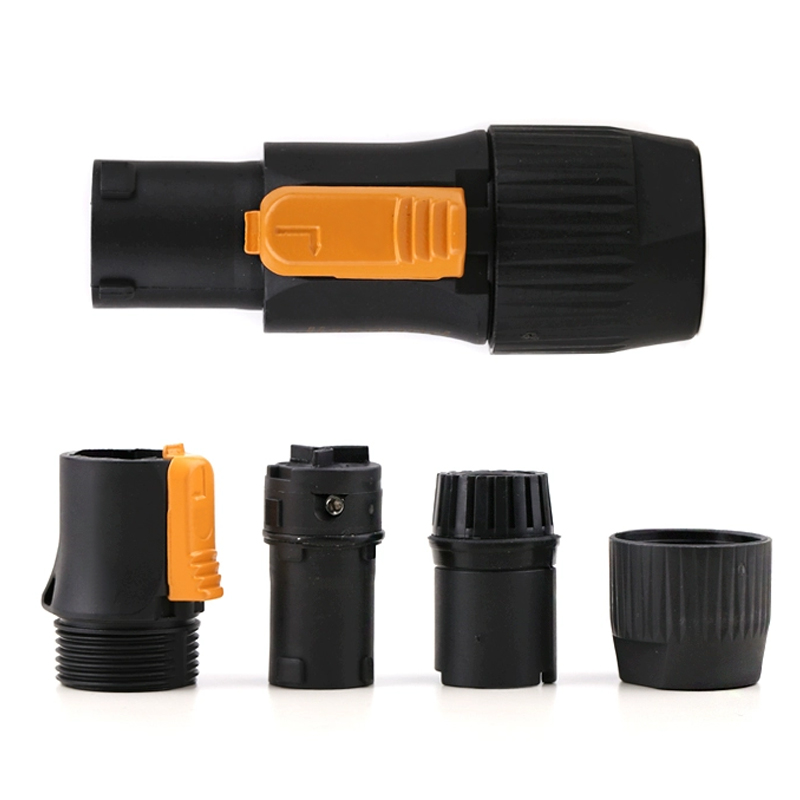

PHLTD IP65 Waterproof Beam Socket LED Large Screen Stage Lighting Audio Three-Pin Connector Plug Disassembly Diagram

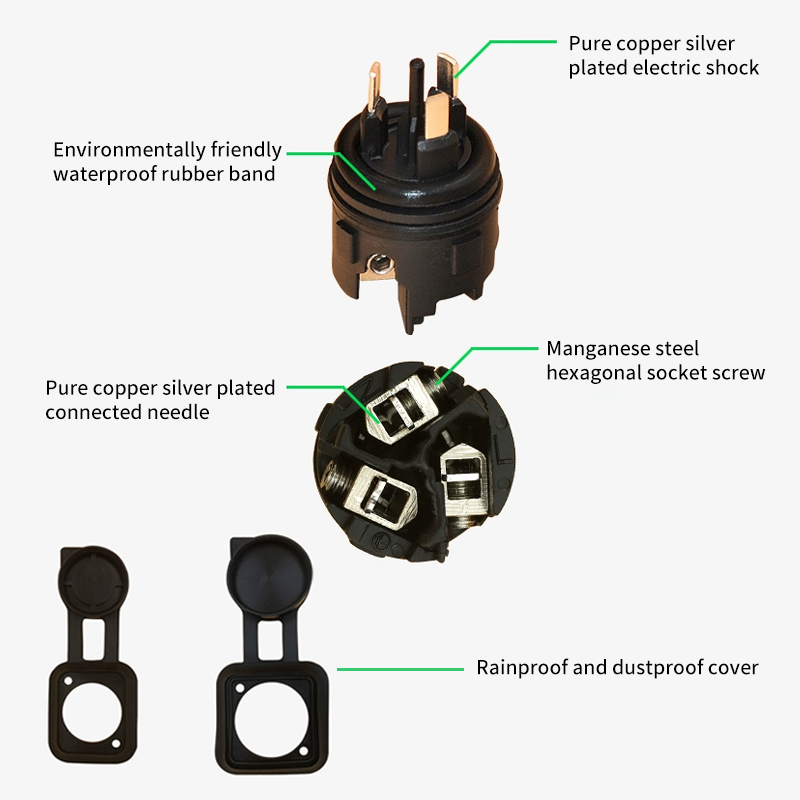

Internal View of Black Beam Power Socket

Wire specifications2.5m㎡~4m㎡/14~12 AWG
Wire diameter rangecentre8mm~Ф12mm
Contact diameter X quantityФ2.0×3
Rated current (A)20A
Working voltage (AC/V RMS)500V
contact resistance<3mΩ
Voltage endurance (AC) for 1 minute2500V
insulation resistance>500MQ
protection gradeIP44
Durability frequencyZ500 times
operation temperature-40℃~80℃
Connection methodCard lock connection
Connection methodscrew type
material
Shell and insulation componentsHigh Performance Engineering Plastics
hardwareZinc alloy (pearl hard chromium)
Copper needleCopper alloy (gold/silver plated)
waterproof ringsilica gel
Flame retardant gradeUL94-VO

Product Specifications:

  • IP Rating: IP65
  • Pins: Three-pin
  • Current Rating: 20A Single-phase
  • Type: Aviation-grade Plug and Socket
  • Applications: Waterproof, LED Displays, Stage Lighting, Audio Systems

Key Advantages:

  • Unmatched waterproof capability for uncompromising performance in harsh conditions.
  • Durable construction with top-grade materials for long-lasting reliability.
  • Stable power delivery to enhance stage performances.
  • Beam socket design for secure and reliable connections.

Ideal Applications:

  • Suitable for large-scale concerts, music festivals, theatrical performances, live TV broadcasts, exhibitions, and any event requiring high-quality stage lighting and audio effects.

Competitive Edge:
The PHLTD IP65 Waterproof Power Aviation Plug and Socket stands out with its impressive waterproof rating, robust current handling capabilities, and dependable connections, offering users an efficient, safe, and convenient power solution tailored for professional stage equipment connections.
